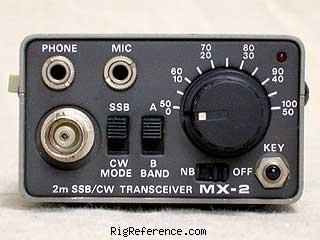

The Mizuho MX-2 is a VHF transceiver. It covers 2 m (50 KHz per XTAL) for both receive and transmit. The receiver system uses VXO with a maximum of 2 XTALS. RF output is 200 mW. Power requirements are 9.5V DC. Dimensions are 142 × 66 × 39 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 2 m (50 KHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2 m (50 KHz per XTAL)
- Modulations
- CW SSB
- RF-output
- 200 mW
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.5V DC
- Current drain RX
- 40 mA
- TX
- Max 160 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Unknown
- Manufactured
- Between 1982 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3591
- MPN
- MIZUHO-MX-000002
Manuals, diagrams and brochures
-
No documents available for this particular model.
