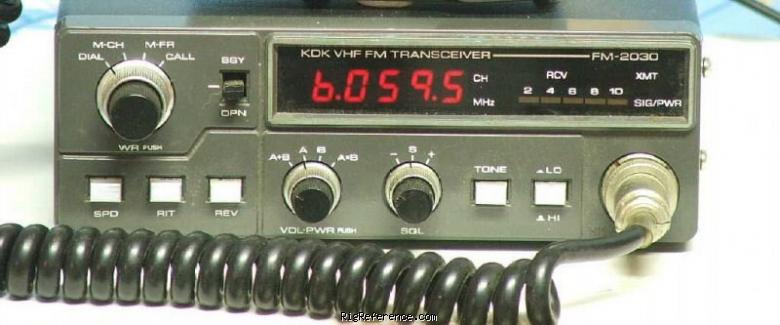

The KDK FM-2030 is a VHF transceiver. It covers 143-149 MHz for receive and 143.005-148.995 MHz for transmit. RF output is selectable between High: 25 W and Low: 5 W. It requires 13.8V DC power. Current drain is 300-600 mA while receiving and 3-6 A while transmitting. Dimensions are 55 × 162 × 182 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 143-149 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 143.005-148.995 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-600 mA
- TX
- 3-6 A
Physical
- Dimensions (w×h×d)
- 162 × 55 × 182 mm (6.38 × 2.17 × 7.17 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1982 and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3319
- MPN
- KDK-FM-002030
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2030. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the KDK FM-2030 in Good condition is around:
- USD 45 ~ USD 100
These estimates are based on the following prices:
