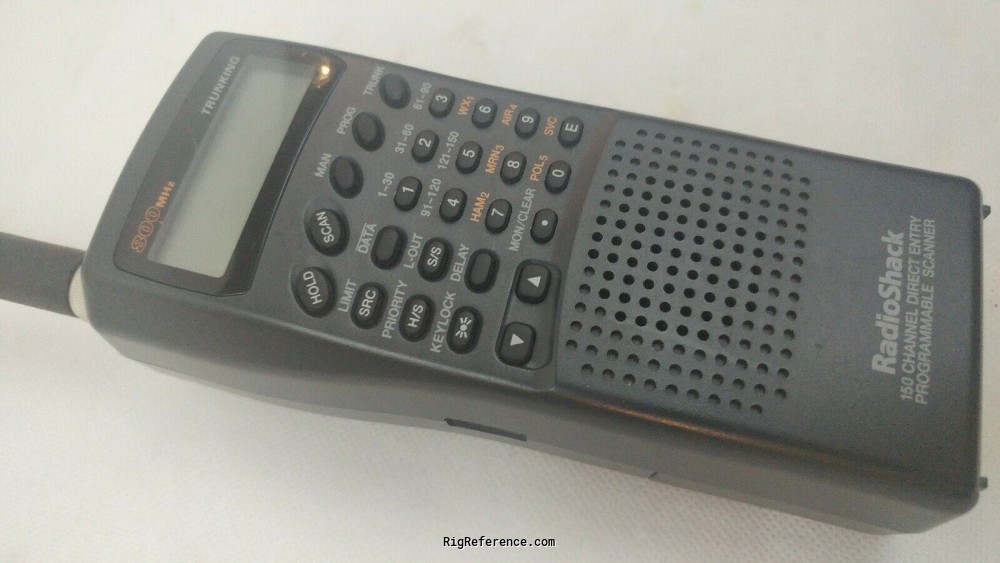

RadioShack / Realistic Pro-91

Handheld VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Find RadioShack / Realistic Pro-91 rigs and spare parts on eBay Find the RadioShack / Realistic Pro-91 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands
6m  2m  70cm  33cm
Frequency stability
?
Tuning steps
?
Memories
150 channels in 5 bank(s) @ 50 channels/second

Receiver

RX-range
29-54 / 108-174 / 406-512 / 806-823 / 851-868 / 896-1126 MHz
Modulations
AM   FM   N-FM
Sensitivity
N-FM 20 dB S/N at 3 kHz deviation
29-54 MHz: 0.5 µV
137-512 MHz: 0.4 µV
806-956 MHz: 0.6 µV
AM 20 dB S/N at 60% modulation
108-137 MHz: 1.5 µV
Selectivity
10 kHz @ -6 dB / 15 kHz @ -50 dB
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
380.7 / 10.85 MHz / 450 kHz
Image rejection
?
Audio output
350 mW max

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
6V DC / 4×AA
Current drain RX
70-180 mA max
TX
-

Physical

Dimensions (w×h×d)
63 × 158 × 40 mm (2.48 × 6.22 × 1.57 in)
Weight
229 gr (8.1 oz)
Form factor
Handheld
Manufactured
Between 1998 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
Trunking scanner
Accessories
-
RigReference ID
3815
MPN
RADIOSHACK-/-REALISTIC-PRO-000091

Manuals, diagrams and brochures

Radio-Shack Pro-91 Owner's Manual PDF - 803.8 kB, submitted by RigReference
