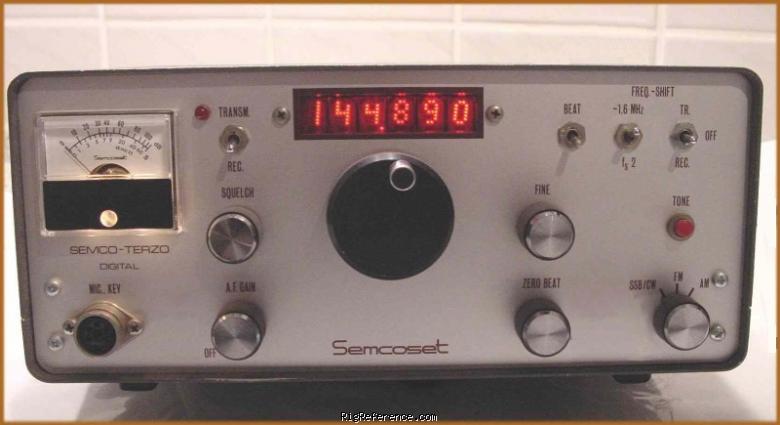

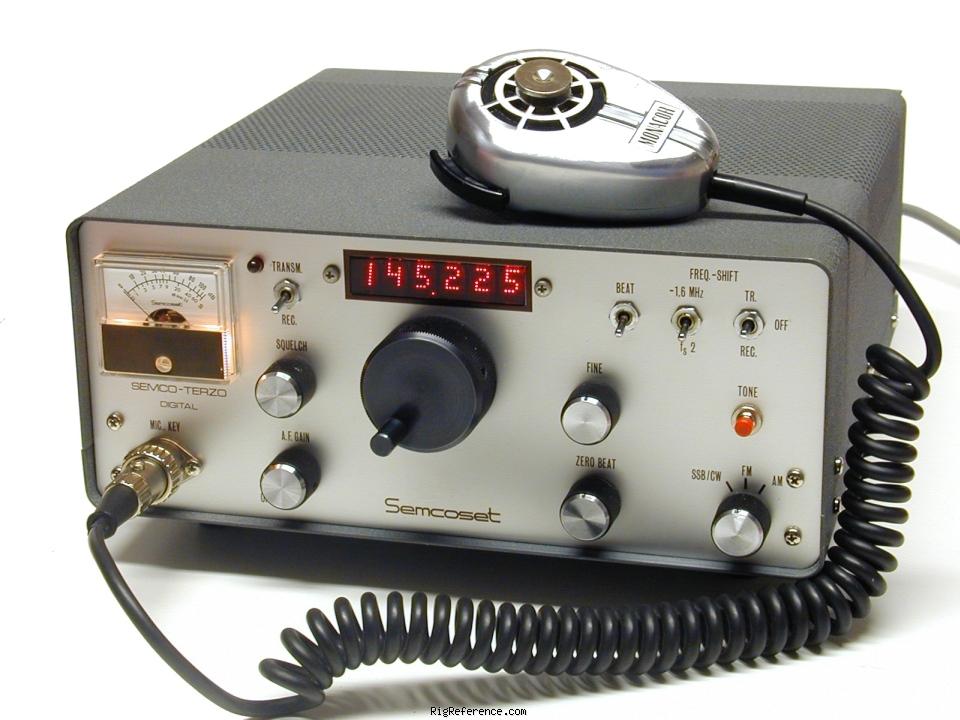

The Semcoset Semco-Terzo (digital) is a VHF transceiver. It covers 144-146 MHz for both receive and transmit. RF output is AM/SSB: 25 W (PEP), FM: 15 W. It features repeater offset. The radio requires 12V DC or mains power, and has a maximum current drain of 7 A during transmit. Dimensions are 260 × 260 × 120 mm. It weighs 5.7 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- AM FM CW SSB
- RF-output
- AM/SSB: 25 W (PEP), FM: 15 W
Connections
- Antenna
- SO-239
- Impedance
- 60Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- ?
- TX
- Max 7 A
Physical
- Dimensions (w×h×d)
- 260 × 260 × 120 mm (10.24 × 10.24 × 4.72 in)
- Weight
- 5.70 kg (12.6 lbs)
- Form factor
- Unknown
- Manufactured
- Between 197x and 197x in W.Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Repeater offset
- Accessories
- -
- RigReference ID
- 3959
- MPN
- SEMCOSET-SEMCO-TERZO-(DIGITAL)
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Semcoset Semco-Terzo (digital). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Semcoset Semco-Terzo (digital) is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
