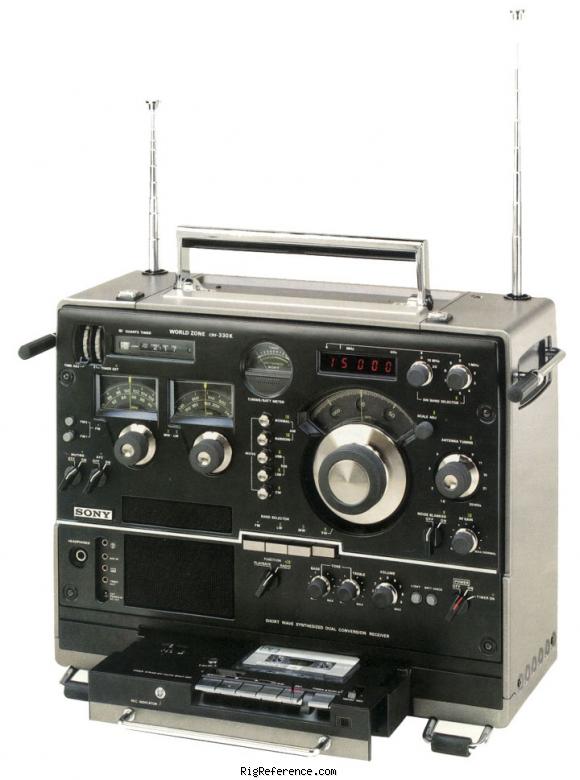

The Sony CRF-330K is a double conversion, quartz synthesized digital receiver. It covers 150-30000 kHz to include longwave, medium wave and all shortwave frequencies. It also receives the FM band. It features ergonomic controls.

Enhancements include: ¼ inch headphone Jack, S/Battery Meter, Bass, Treble, RF Gain, Dial Lamp, Clock Timer, Noise Blanker, Dial Adjust, Local-DX Switch, Carry Handle, Record Jack, Aux. Input Jack, Muting, Slide-Out Cassette Recorder, Antenna Trimmer, Built-in Mic. Later production units featured an LCD rather than a mechanical digital clock. The model CRF-320A was similar, but without the cassette deck.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.15-30 / 88-108 MHz
Modulations
AM   W-FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
Built-in sweep
Impedance
?
Other
-

Electrical

Power requirements
12V DC (8 x R20/D batteries) or mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
452 × 335 × 208 mm (17.80 × 13.19 × 8.19 in)
Weight
15.00 kg (33.1 lbs)
Form factor
Handheld
Manufactured
Between 1978 and 1980 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in cassette recorder
Accessories
-
RigReference ID
4007
MPN
SONY-CRF-000330K

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony CRF-330K. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sony CRF-330K is around:

  • USD 80.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2003 USD 1700.00 Used / Mint dxace1
