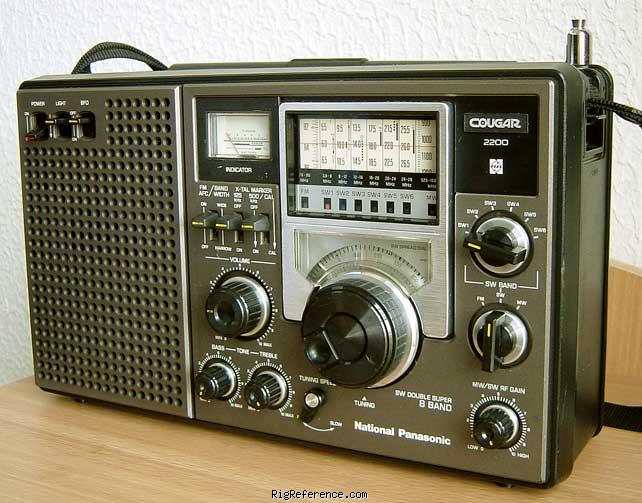

The Panasonic RF-2200 receives the AM, FM and shortwave bands. Ranges: .525-16.1, 3.9-8, 8-12, 12-16, 20-24 and 24-28 MHz plus FM. This radio features a very accurate analog dial. It has an S-Meter, BFO, FM AFC, Bass, Treble, Record Jack, Two Tuning Rates, Dial Lamp, Dial Lamp Switch, RF Gain, Calibrator 125/500 kHz and External Antenna Terminals. This dual conversion circuit features wide and narrow selectivity (5/3.4 kHz -6dB). The rotatable ferrite rod antenna makes the RF2200 a strong medium wave performer. Early production models where gray (as image above), later models where black.
The European counterpart is called the National / Panasonic DR-22.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.525-1.61 / 3.9-28 / 87.5-108 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
FM: 2µV
MW: 14µV
SW: 0.5µV
Selectivity
?
Filters
?
Receiver system
Double Superheterodyne
IF-frequencies
FM: 10.7 MHz
MW/SW 1st: 1.985 MHz
SW 2nd: 455 kHz
Image rejection
?
Audio output
3W max, 8 ohm

Connections

Antenna
Built-in ferrite bar + Built-in telescopic
Impedance
?
Other
-

Electrical

Power requirements
Mains or 4LR20 / D
Current drain RX
7W
TX
-

Physical

Dimensions (w×h×d)
305 × 200 × 100 mm (12.01 × 7.87 × 3.94 in)
Weight
3.40 kg (7.5 lbs) without batteries
Form factor
Handheld
Manufactured
Between 1978 and 1979 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4431
MPN
NATIONAL-/-PANASONIC-RF-002200

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used National / Panasonic RF-2200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the National / Panasonic RF-2200 is around:

  • AUD 110.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2014 AUD 135.00 Used / Okay Rahob
