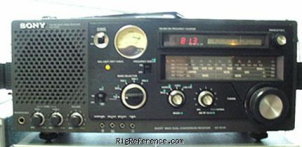

The Sony ICF-6700W worldband receiver covers AM, FM (87.5-180 MHz) and shortwave coverage from 1.6-10, 11.5-20 and 20-30 MHz. The radio has both analog and digital displays. The digital display does not function on the FM band and may be switched off. Features include: S/Battery Meter, AFC, Time Chart/Map, Bass & Treble, Wide/Narrow Selectivity and BFO for SSB/CW. The main tuning knob is velvet-smooth and has a fly wheel. Jacks are provided for headphones, earphone, record output and timer input. The rear panel has antenna terminals. May be operated from 110/120/220/240 V AC or six D cells.

The Sony ICF-6700L is similar but also receives longwave from 150 to 400 kHz.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
Continuous

Receiver

RX-range
0.53-30.15 / 88-108 MHz
Modulations
AM   W-FM   CW   USB   LSB
Sensitivity
0.63 µV (S+N/N=6dB)
Selectivity
AM 9.0 kHz, AM-N/SSB 4.0 kHz
Filters
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz (SW1)
2nd: 455 kHz (SW2)
FM: 10.7 MHz
Image rejection
50-60 dB
Audio output
1 W

Connections

Antenna
Clamps / screws + Built-in ferrite bar + Built-in sweep
Impedance
50-70Ω
Other
-

Electrical

Power requirements
9 V DC or mains
Current drain RX
?
TX
-

Physical

Manufactured
Between 1978 and 1980 in Japan
Dimensions (w×h×d)
453 × 184 × 227 mm (17.83 × 7.24 × 8.94 in)
Weight
5.40 kg (11.9 lbs) including batteries
Form factor
Handheld

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
SONY-ICF-006700W

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Really Nice SW Receiver

Sony ICF-6700W, Handheld HF/VHF Receiver

I have owned this receiver for ten years and use it constantly to watch for DX in my office. If something shows up, I can run down to the shack and try and make a contact. This has been a very serviceable radio and has not failed me yet. It has good sensitivity and with an outdoor antenna, hears almost as good as my FT1000. It was relatively cheap on EBAY ($150) and has been trouble free since I bought it. I wouldn't call it great, but it certainly ranks a good.

Written by K5LRS on Jul 28, 2013

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2003
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-6700W. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sony ICF-6700W is around:

  • USD 159.00 ~ USD 168.00

These estimates are based on the following prices: (see all 2 prices)

Year Historic price Condition Submitted by
2020 USD 168.50 Used / Good RigReference
2010 USD 399.95 New / Good universal-radio
