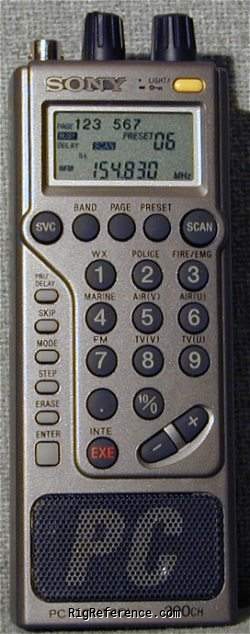

The Sony ICF-SC1 PC Wavehawk is a capable scanner covering 25 to 1300 MHz (less cellular) in AM, FM-N and FM-W modes. It has 300 memory channels. The Intelligent Active Memory System memorizes a frequency which has been received for five seconds or longer. Other features include: backlit LCD, key lock and skip function. Scanning modes include: Band Scanning, Programmable Scanning, Memory Scanning, Intelligent Memory Scanning and Priority Scanning. The controls are easy to use and you also get one button access to public service categories (police, fire emergency, VHF air, UHF air, marine, FM broadcast, VHF TV sound and UHF TV sound).
The Sony ICF-SC1 PC is similar to the Sony ICF-SC1, but additionally has a bi-directional PC interface supporting search and control capability from a computer. The supplied PC serial interface cable plugs into the right side of the radio.
New price 2002 in the US: $249.00
General characteristics
- HAM bands
- 11m (CB) 6m 2m 1.25m 70cm 33cm 23cm 10m 4m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 300 channels in 1 bank(s)
Receiver
- RX-range
- 25-1300 MHz (Cellular blocked in the US)
- Modulations
- AM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6V DC (4 x LR6/AA or external adapter)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 64 × 177 × 44 mm (2.52 × 6.97 × 1.73 in)
- Weight
- 255 gr (9.0 oz)
- Form factor
- Handheld
- Manufactured
- Between 2002 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- PC-controllable (Serial DB9)
- Accessories
- AC-E60HG AC adapter
- RigReference ID
- 4026
- MPN
- SONY-ICF-SC000001-PC
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-SC1 PC. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Sony ICF-SC1 PC is around:
- USD 10.00 ~ USD 173.00
These estimates are based on the following prices:
