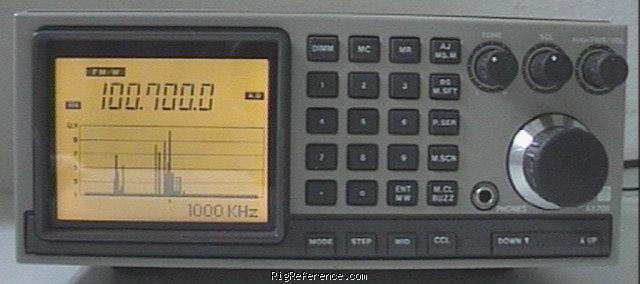

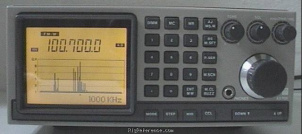

The Standard AX-700 is a Mobile VHF/UHF Scanner / receiver. It covers 50-905 MHz and has a tuning step of 10 / 12.5 / 20 / 25 kHz. The AX-700 features 1 memory bank with 100 channels, Bandscope, TV tuner front end. The receiver requires 13.8V DC +/-15% and has a maximum current drain of 1A in receive mode. Dimensions are 75 × 180 × 180 mm and the unit weighs 2.1 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 10 / 12.5 / 20 / 25 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 50-905 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- AM: 3V (10dB S/N)
FM: 1.5V (12 dB SINAD)
W-FM: 1V (12 dB SINAD @ 83 MHz) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Max 1 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 180 × 75 × 180 mm (7.09 × 2.95 × 7.09 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1988 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Bandscope TV tuner front end
- Accessories
- -
- RigReference ID
- 4047
- MPN
- STANDARD-AX-000700
Manuals, diagrams and brochures
- Standard AX-700 PDF - 11.45 MB, submitted by Berend
- AX-700 Schematic JPEG - 2.44 MB, submitted by Berend
- AX-700 Block Diagram JPEG - 842.6 kB, submitted by Berend
- Standard AX-700 User PDF - 2.51 MB, submitted by Pat Malloy
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard AX-700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Standard AX-700 in Good condition is around:
- USD 390
- EUR 187
These estimates are based on the following prices:
