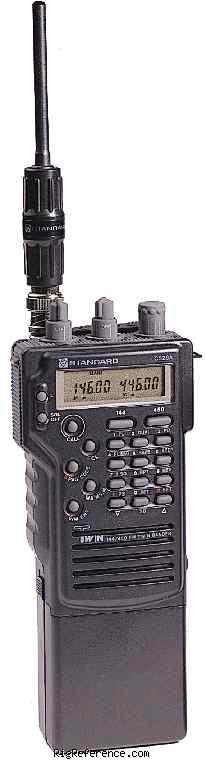

Standard C-528 Handheld VHF/UHF Transceiver

 (5.0/5)  Add a story   View all stories (2)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
138-200 / 300-500 / 800-1000 MHz
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 5/5 W, Medium: 2/2 W, Low: 350/350 mW

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
6-16V DC (7.2V DC nominal)
Current drain RX
17-100 mA
TX
Max 1.3 A

Physical

Dimensions (w×h×d)
55 × 157 × 31 mm (2.17 × 6.18 × 1.22 in)
Weight
450 gr (15.9 oz) Batteries & antenna included
Form factor
Handheld
Manufactured
Between 1989 and 199x in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
DTMF. CTCSS/PL. Twin RX
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Great portable

Standard C-528, Handheld VHF/UHF Transceiver

Easy to handle but with many features.

Written by MAT on Aug 24, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1991
EUR 500.00

Bought again

Standard C-528, Handheld VHF/UHF Transceiver

after selling my STANDARD I bought it again because I didn't find an equal one like this.

Written by MAT on Aug 24, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
EUR 170.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Standard C-528. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Standard C-528 might be around:

  • EUR 73.00
  • GBP 95.00
Price Condition Year User
EUR 500.00 New / Good 1991 MAT
EUR 170.00 Used / Okay 2009 MAT
GBP 100.00 Used / Okay 2015 G6UDX
EUR 75.00 Used / Poor 2016 Lukas Thorwald Hey
