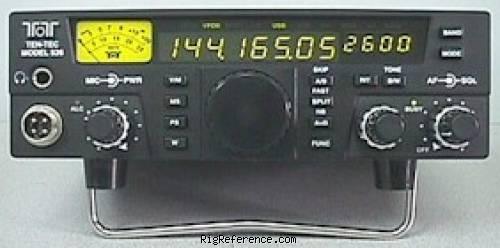

Amateur radios' first IF-DSP multi mode VHF rig.

General characteristics

HAM bands
6m  2m
Frequency stability
?
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
50-54 / 136-174 MHz
Modulations
FM   CW   SSB
Sensitivity
SSB: 0.2 µV (10 dB S+N/N @ 2.4 kHz BW)
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 45 MHz
2nd: 450 KHz
3rd: 14.5 KHz
Image rejection
?
Audio output
?

Transmitter

TX-range
50-54 / 144-148 MHz
Modulations
FM   CW   SSB
RF-output
1-20/1-20 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
12-14V DC
Current drain RX
400 mA (no signal)
TX
Max 6 A

Physical

Dimensions (w×h×d)
216 × 70 × 222 mm (8.50 × 2.76 × 8.74 in)
Weight
?
Form factor
Mobile
Manufactured
Between 2000 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS encoder. IF-DSP with 35 built-in filters.
Accessories
-
RigReference ID
4155
MPN
TEN-TEC-000526-(6N2)

Manuals, diagrams and brochures

Ten-Tec Model 526 Operator's Manual PDF - 5.70 MB, submitted by Gerd

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec 526 (6N2). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Ten-Tec 526 (6N2) is around:

  • USD 86.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 536.00 Used / Good eBay
