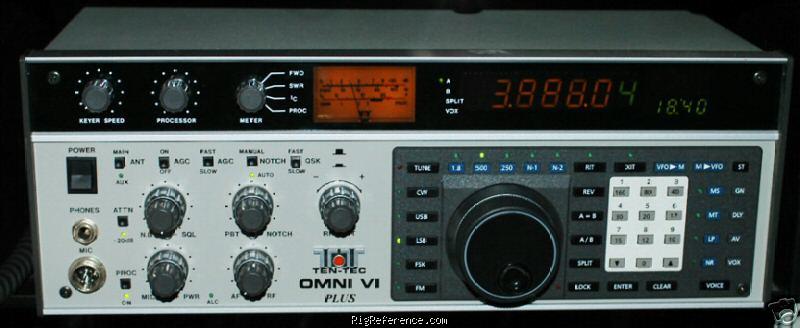

Ten-Tec Omni VI Plus (564)

Desktop Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
10-160 m
TX-range
10-160 m
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM   CW   SSB   FSK   AFSK
Sensitivity
FM: 0.35 µV (12 dB SINAD @ 15 kHz BW)
SSB/CW: 0.16 µV (10 dB S+N/N @ 2.4 kHz BW)
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
>90 dB!
Audio output
?

Transmitter

Modulations
FM   CW   SSB   FSK   AFSK
RF-Output
0-100 W

Connections

Antenna
RCA
Impedance
50 Ω

Electrical

Power requirements
12-15V DC
Current drain RX
2 A max
TX
20 A max

Physical

Dimensions (w×h×d)
375 × 146 × 432 mm (14.76 × 5.75 × 17.01 in)
Weight
7.25 kg (16.0 lbs)
Form factor
Base Station
Manufactured
Between 1997 and 20xx in USA
MPN
TEN-TEC-OMNI-VI-PLUS-(000564)

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
RS-232C. DSP
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Ten-Tec Omni VI Plus (564) user manuals on eBay

Reviews & stories

Wonderful CW Rig

Ten-Tec Omni VI Plus (564), Desktop Shortwave Transceiver

This rig is the best CW rig I've owned. It has the Ten Tec 500 hz 900 Mhz, the 500 Hz 6.3 Mhz, the 250 Hz 6.3 Mhz and the 1.8 Hz 6.3 Mhz filters, plus the Inrad 753 400 Hz and the Inrad 600 Hz filters. This rig will pull almost anything out of the noise. I live on a small city lot and only use a tribander at 40 feet, and a 450 Ohm center fed zepp. I have 295 DXCC countries worked and 289 confirmed all with 100 watts or less. For the money and a older rig it can hold it's own with almost any of today's rigs. Wonderful QSK operation and easy to operate, don't need to go to school to set down and operate it.

Written by N7RD on Dec 4, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Omni VI Plus (564). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Ten-Tec Omni VI Plus (564) is around:

  • USD 583.00
  • GBP 99.00
Year Historic price Condition Submitted by
2018 GBP 100.00 Used / Good John G8CCD
2010 USD 1175.00 Used / Mint eBay
