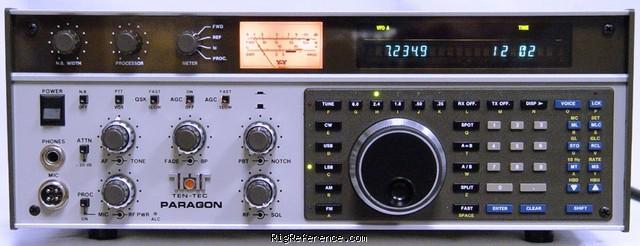

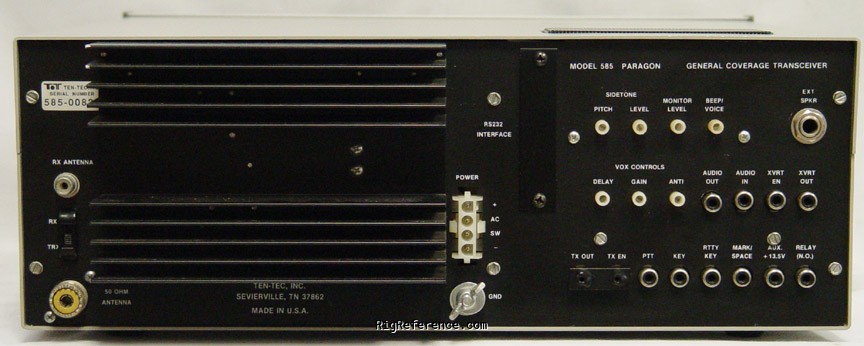

The Ten-Tec Paragon (585) transceiver covers amateur band from 160 to 10 meters. This microcontroller controller model has a 7-digit digital display, keypad entry and an a nice vintage looking analog S-/Power-meter. The rear panel has lots of inputs and outputs.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
1 p.p.m. per °C or better, accuracy ±50Hz @ 25 °C
Tuning steps
?
Memories
62 channels in 1 bank(s)

Receiver

RX-range
100 kHz - 29.999 MHz
Modulations
AM   FM   CW   USB   LSB   FSK   AFSK
Sensitivity
SSB/CW/FSK: 0.5 µV
FM: 1.0 µV
AM: 3.5 µV
Selectivity
?
Filters
6 / 2.4 kHz (optional 1.8 / 0.5 / 0.25 kHz)
Receiver system
? conversion superheterodyne
IF-frequencies
?
Image rejection
≥ 80 dB
Audio output
1.5 W @ 4 ohms

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   FSK   AFSK
RF-output
0-100 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
2 A
TX
20 A

Physical

Dimensions (w×h×d)
146 × 375 × 432 mm (5.75 × 14.76 × 17.01 in)
Weight
7.25 kg (16.0 lbs)
Form factor
Base Station
Manufactured
Between 1987 and 198x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
Speech processor
Noise blanker
Dual VFO
TX split / RX split
7 Character alpha tags
Clock
Optional RS-232 (1200 baud)
Accessories
-
RigReference ID
4178
MPN
TEN-TEC-PARAGON-(000585)

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Paragon (585). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Ten-Tec Paragon (585) is around:

  • USD 126.00 ~ USD 173.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 USD 500.00 Used / Okay Tony Fields
2011 USD 350.00 Used / Mint hfradionut
2009 USD 400.00 Used / Good TEAMFAB
2004 USD 700.00 Used / Good aaltese1
