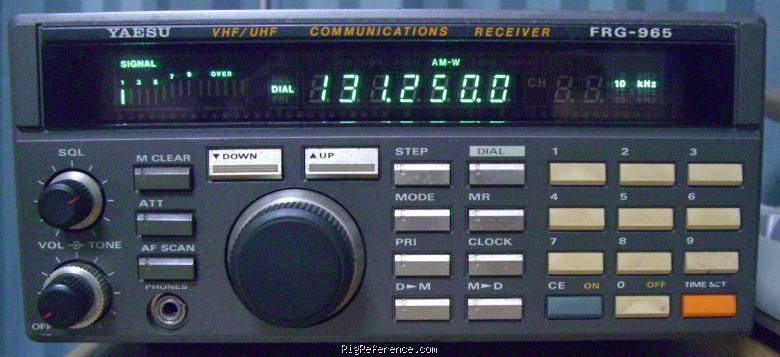

Yaesu FRG-965

General characteristics

HAM bands

2m  1.25m  70cm  4m

Frequency stability

?

Tuning steps

100 Hz, 1 / 5 / 10 / 12.5 / 25 kHz

Memories

100 channels in 1 bank(s)

Receiver

RX-range

60-905 MHz

Modulations

N-AM   W-AM   N-FM   W-FM   SSB   USB   LSB

Sensitivity

AM-N: 1 µV (10 dB S+N/N)
AM-W: 1.5 µV (10 dB S+N/N)
FM-N: 0.5 µV (12 dB SINAD)
FM-W: 1 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Double (FM-W) or triple (FM-N/AM/SSB) conversion superheterodyne

IF-frequencies

1st: 45.754 MHz
2nd: 10.7 MHz
3rd: 455 kHz

Image rejection

?

Audio output

1 W at 10% distortion / 8 ohm

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-15 V DC

Current drain RX

≤ 550 mA

TX

-

Physical

Dimensions (w×h×d)

180 × 80 × 220 mm (7.09 × 3.15 × 8.66 in)

Weight

2.20 kg (4.9 lbs)

Form factor

Base Station

Manufactured

Between 198x and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

TV tuner front end (!)

Accessories

-

RigReference ID

4224

MPN

YAESU-FRG-000965

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-965. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FRG-965 in Good condition is around:

• EUR 1,113
