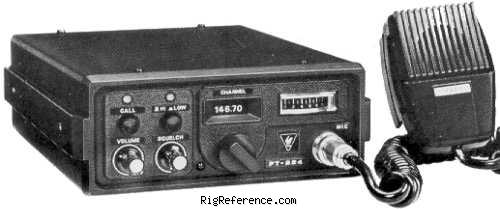

Yaesu FT-224

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yaesu FT-224 is a VHF transceiver. Frequency range for reception and transmission is 144-146 MHz (Europe) or 146-148 MHz (USA). RF output is selectable between High: 10 W and Low: 1 W. The radio features 1 memory bank with 24 channels. Power requirements are 13.8V DC. Current drain in receive mode is Max 400 mA, and Max 2.2 A in transmit mode. Dimensions are 70 × 180 × 220 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 24 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Europe)
146-148 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
146-148 MHz (USA)
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 400 mA
TX: Max 2.2 A

Physical

Dimensions (w×h×d): 180 × 70 × 220 mm (7.09 × 2.76 × 8.66 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Unknown
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4260
MPN: YAESU-FT-000224
