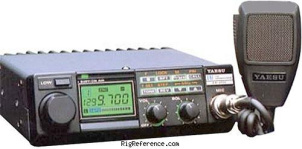

The Yaesu FT-2311R is a compact synthesized FM mobile/base transceiver providing switch-selectable power output of either 5* or 10 watts on the 1.2 GHz amateur band. The reversible sloped front panel allows convenient overhead mounting, and includes soft green back-lighting of the keys and controls, and the large liquid crystal display (with bar graph PO/S-meter). Inside the FT-2311R, extensive use of chip components assures high circuit reliability, while modular circuit construction makes servicing easy.

General characteristics

HAM bands
23cm
Frequency stability
± 1.5 p.p.m. (between 0°C and 50°C)
Tuning steps
10 / 20 kHz (Japan version)
12.5 / 25 kHz (US/EU version)
Memories
10 channels in 1 bank(s)

Receiver

RX-range
1260-1300 MHz (A version)
1258-1300 MHz (B version, Europe)
Modulations
FM
Sensitivity
0.25 uV (12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 58.3 MHz
2nd: 455 kHz
Image rejection
?
Audio output
1.5 W at 5% distortion / 8 ohms

Transmitter

TX-range
1260-1300 MHz (A version)
1258-1300 MHz (B version, Europe)
Modulations
FM
RF-output
High: 10 W, Low: 1 W (version B), 5 W (version B)

Connections

Antenna
N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
500-660 mA
TX
2.5-5.5 A

Physical

Dimensions (w×h×d)
160 × 50 × 175 mm (6.30 × 1.97 × 6.89 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Mobile
Manufactured
Between 198x and 198x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
1750 Hz tone burst (version B only)
Accessories
-
RigReference ID
4265
MPN
YAESU-FT-002311R

Manuals, diagrams and brochures

Yaesu FT-2311R Operating Manual PDF - 6.35 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2311R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-2311R is around:

  • AUD 198.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2011 AUD 400.00 Used / Good VK3ZAQ
