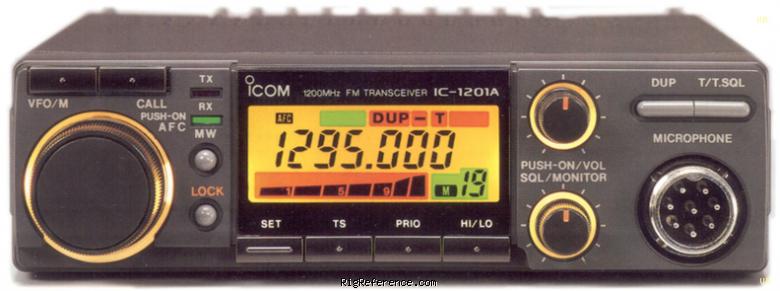

ICOM IC-1201

General characteristics

HAM bands

23cm

Frequency stability

±10 p.p.m. @ -10 to +60°C (14 to 140°F)

Tuning steps

10./ 20 kHz

Memories

22 channels in 1 bank(s)

Receiver

RX-range

1260-1300 MHz

Modulations

FM

Sensitivity

0.22 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 136.6 MHz
2nd: 17.2 MHz
3rd: 455 kHz

Image rejection

?

Audio output

.4 W at 10% distortion / 8 ohm

Transmitter

TX-range

1260-1300 MHz

Modulations

FM

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

0.8-12 A

TX

3-6 A

Physical

Dimensions (w×h×d)

140 × 40 × 200 mm (5.51 × 1.57 × 7.87 in)

Weight

1.50 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 1988 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL encoder
AFC
RIT/VXO
Dimmer.

Accessories

-

RigReference ID

2966

MPN

ICOM-IC-001201
