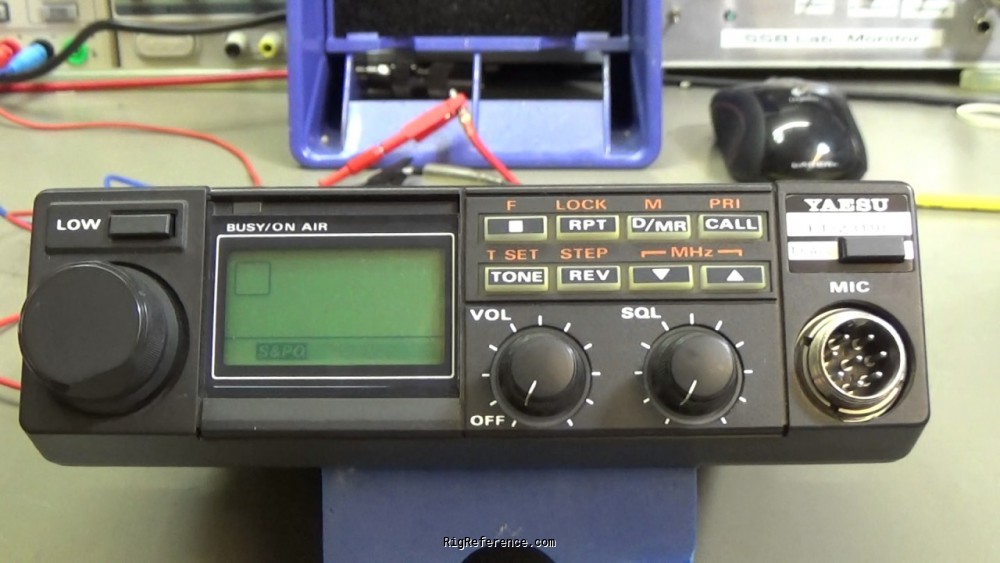

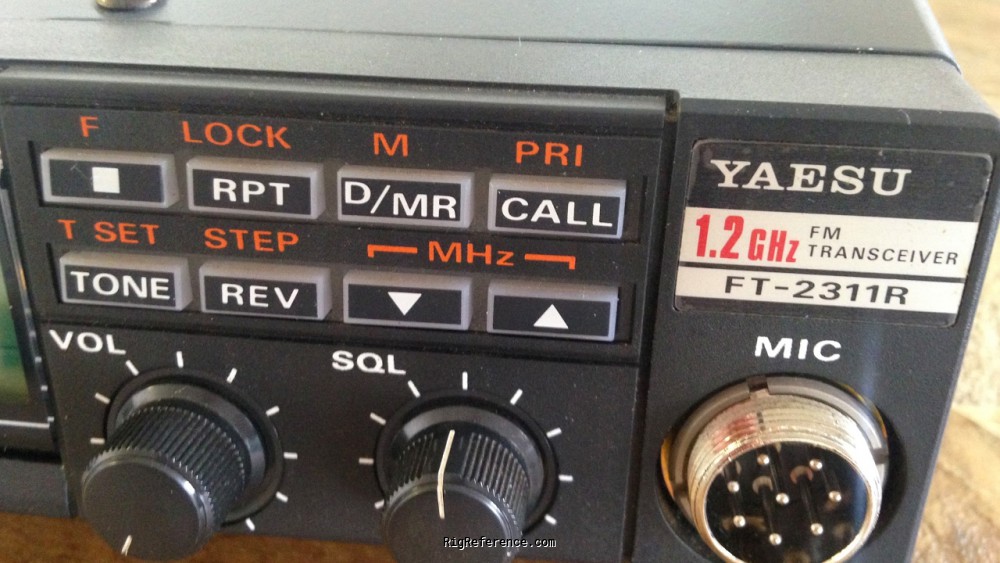

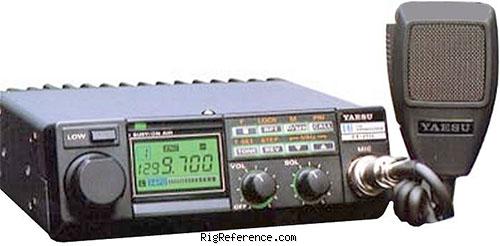

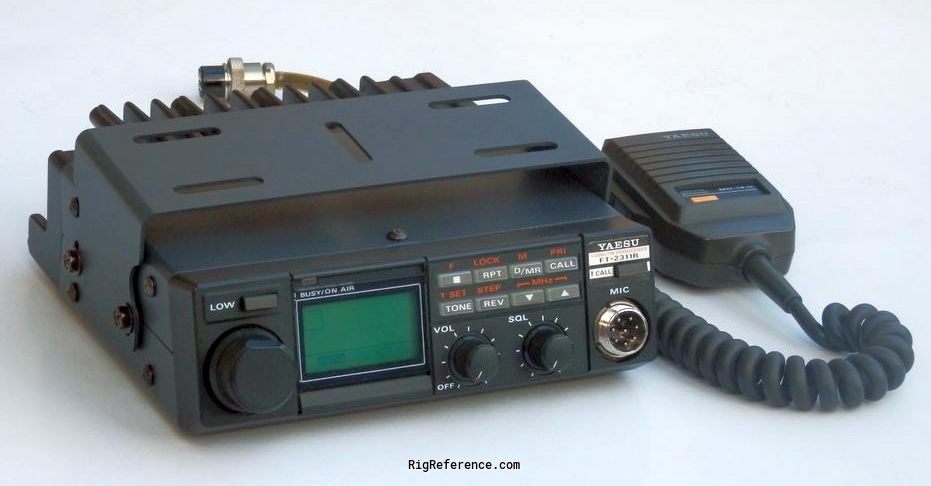

The Yaesu FT-2311R is a compact synthesized FM mobile/base transceiver providing switch-selectable power output of either 5* or 10 watts on the 1.2 GHz amateur band. The reversible sloped front panel allows convenient overhead mounting, and includes soft green back-lighting of the keys and controls, and the large liquid crystal display (with bar graph PO/S-meter). Inside the FT-2311R, extensive use of chip components assures high circuit reliability, while modular circuit construction makes servicing easy.
General characteristics
- HAM bands
- 23cm
- Frequency stability
- ± 1.5 p.p.m. (between 0°C and 50°C)
- Tuning steps
- 10 / 20 kHz (Japan version)
12.5 / 25 kHz (US/EU version) - Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 1260-1300 MHz (A version)
1258-1300 MHz (B version, Europe) - Modulations
- FM
- Sensitivity
- 0.25 uV (12 dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 58.3 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 1.5 W at 5% distortion / 8 ohms
Transmitter
- TX-range
- 1260-1300 MHz (A version)
1258-1300 MHz (B version, Europe) - Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W (version B), 5 W (version B)
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 500-660 mA
- TX
- 2.5-5.5 A
Physical
- Dimensions (w×h×d)
- 160 × 50 × 175 mm (6.30 × 1.97 × 6.89 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1750 Hz tone burst (version B only)
- Accessories
- -
- RigReference ID
- 4265
- MPN
- YAESU-FT-002311R
