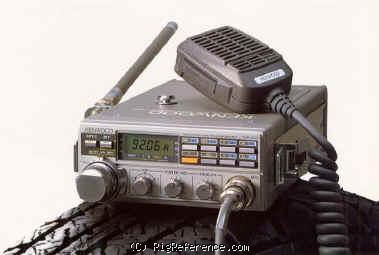

Kenwood TR-50

Mobile UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Kenwood TR-50 is a Mobile UHF Transceiver. It covers 1260-1300 MHz for both RX and TX. The RF output is 1 W. It features 1 memory bank with 5 channels. Power requirements are 13.8V DC. The weight is 1.2 kg incl. battery and antenna. Current drain is 180 mA in RX and 850 mA in TX. Dimensions are 52 × 158 × 210 mm.

General characteristics

HAM bands: 23cm
Frequency stability: ?
Tuning steps: ?
Memories: 5 channels in 1 bank(s)

Receiver

RX-range: 1260-1300 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1260-1300 MHz
Modulations: FM
RF-output: 1 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 180 mA
TX: 850 mA

Physical

Dimensions (w×h×d): 158 × 52 × 210 mm (6.22 × 2.05 × 8.27 in)
Weight: 1.20 kg (2.6 lbs) incl. battery and antenna
Form factor: Mobile
Manufactured: Between 1984 and 198x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3453
MPN: KENWOOD-TR-000050

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TR-50 PDF - 21.05 MB, submitted by Berend

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-50. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TR-50 is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
