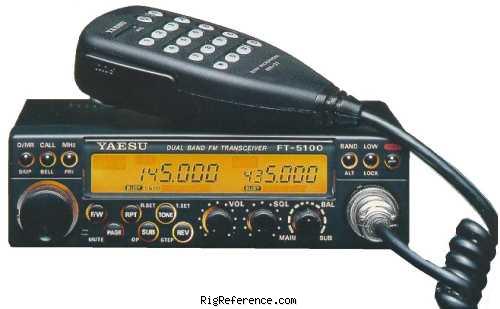

The Yaesu FT-5100 is a mobile VHF/UHF transceiver. Frequency range for receive and transmit is 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA). RF output is High: 50/35 W, Low: 5/5 W. Power requirement is 13.8V DC. Features include Twin RX. Dimensions are 40 × 140 × 155 mm. Current drain during receive is Max 600 mA and during transmit Max 11.5 A. Weight is 1 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 50/35 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 155 mm (5.51 × 1.57 × 6.10 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1993 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 4304
- MPN
- YAESU-FT-005100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-5100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-5100 in Good condition is around:
- USD 258 ~ USD 338
These estimates are based on the following prices:
