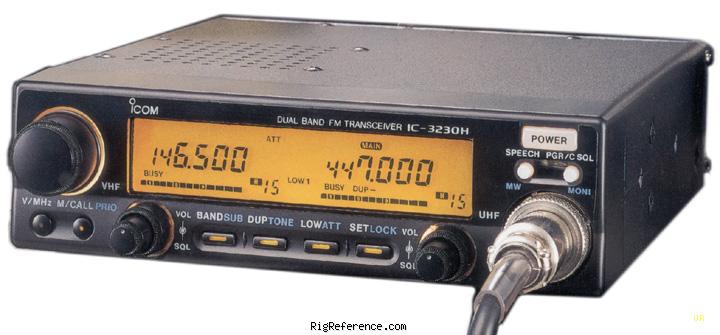

The ICOM IC-3230H dual band mobile FM transceiver boasts 45 watts output on 2 meters and 35 watts on 440 MHz. This rig features a LCD display. Receive range is 136-174, 440-450 MHz. It features 36 memories. There is even a built-in antenna duplexer for easy dual band antenna connection, so there is just one SO-239 on the rear panel. There is a built-in programmable tone encoder (USA version) and 20 dB RF Attenuator. You also get a lock function and illuminated switches. Internal options require only easy plug-in installation.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 36 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 400-479 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 45/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 10.5 A max
Physical
- Dimensions (w×h×d)
- 140 × 40 × 165 mm (5.51 × 1.57 × 6.50 in)
- Weight
- 1.25 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1992 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 3071
- MPN
- ICOM-IC-003230H
