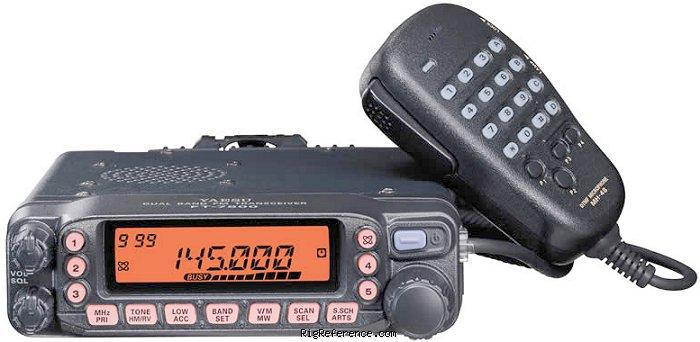

FT-7800R: US model
FT-7800E: European model

NOAA Weather ALert (U.S. Version only)
A special memory bank on the FT-7800R allows instant recall of the ten NOAA Weather frequencies. What’s more, you can enable a special “Severe Weather Alert” feature that will sound an alarm when a NOAA station transmits the special alert tone during a severe weather alert broadcast.

Over 1000 Memory Channels
The FT-7800R’s incredible memory channel capacity includes registers for over 1000 channels, each capable of storing a 6-character Alpha-Numeric label. And the memories may be stored in any of the 20 available memory groups; a particular memory channel may also be stored in multiple groups, if desired.

WiRES™ Internet Linking Capability
The FT-7800R’s DTMF signaling capability includes provision for easy access to Yaesu’s WiRES™ (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.

YSK-7800 Remote Mounting Kit (option)
Using the optional YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7800R’s front panel on the vehicle’s dash board, then stow the radio’s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.

One-Touch "Hyper Memory" Operation
Five front panel keys allow complete transceiver configuration status to be stored for convenient one-touch recall. So you can set up favorite frequencies in each operating band, including the receive-only bands, then recall them with a single touch of a button!

High Power Output
Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7800R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too

Wide Receiver Frequency Coverage
The FT-7800R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!

The Yaesu FT-7800 has been replace with the FT-7900 in 2009.

General characteristics

HAM bands
2m  70cm
Frequency stability
± 5 p.p.m. @ 14° F ~ +140° F (–10 °C ~ +60 °C)
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
108-520 / 700-999.99 MHz (cellular blocked in the US)
Modulations
FM   AFSK
Sensitivity
0.8 µV (TYP) for 10 dB SN (108 - 137 MHz, AM)
0.2 µV for 12 dB SINAD (137 - 150 MHz, FM)
0.25 µV for 12 dB SINAD (150 - 174 MHz, FM)
0.3 µV (TYP) for 12 dB SINAD (174 - 222 MHz, FM)
0.25 µV (TYP) for 12 dB SINAD (222 - 300 MHz, FM)
0.8 µV (TYP) for 10 dB SN (300 - 336 MHz, AM)
0.25 µV for 12 dB SINAD (336 - 420 MHz, FM)
0.2 µV for 12 dB SINAD (420 - 520 MHz, FM)
0.4 µV (TYP) for 12 dB SINAD (800 - 900 MHz, FM)
0.8 µV (TYP) for 12 dB SINAD (900 - 999.99 MHz, FM)
Selectivity
12 kHz (-6 dB), 30 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
45.05 MHz / 450 kHz
Image rejection
?
Audio output
2 W @ 8 Ω for 10 % THD

Transmitter

TX-range
144-148 / 430-450 MHz (USA)
144-146 / 430-440 MHz (Europe)
Modulations
FM   AFSK
RF-output
High: 50/40 W, Mid1: 20/20 W, Mid2: 10/10 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC (±15%), negative ground
Current drain RX
0.5 A max
TX
8.5 A max

Physical

Dimensions (w×h×d)
140 × 42 × 168 mm (5.51 × 1.65 × 6.61 in) w/o knobs & connectors
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 2003 and 2009

Other features

Usage
Amateur / Ham radio operators
Features + options
Wires and 1200/9600 baud packet ready. Detachable front panel.
Antenna duplexer
Accessories
-
RigReference ID
4345
MPN
YAESU-FT-007800R/E

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Good radio, good value for money 13 years ago by TODD

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-7800R/E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-7800R/E is around:

  • USD 36.00
  • GBP 41.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 GBP 50.00 Used / Good John G8CCD
2010 USD 225.00 Used / Mint TODD
