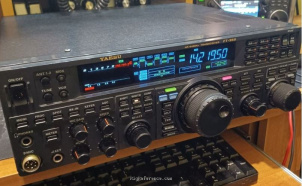

The Yaesu FT-950 is a Desktop HF/VHF Transceiver. It covers a frequency range of 0.03-56 MHz for reception and 10-160 m + WARC / 50-54 MHz for transmission. The RF output power is 5-100 W with a maximum output of 25W on AM. It features IF-DSP, a built-in auto-ATU and keyer. It has 1 memory bank with 99 channels and requires 13.8V DC power. The maximum current drain during transmit is 22A.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-56 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 5-100 W/5-100 W (AM: Max 25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 22 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IF-DSP. Built-in auto-ATU and keyer
- Accessories
- -
- RigReference ID
- 4375
- MPN
- YAESU-FT-000950
Manuals, diagrams and brochures
- Yaesu FT-950-Brochure PDF - Unknown size, submitted by RigReference
- FT-950 Service Manual PDF - 12.04 MB, submitted by Berend
- FT-950 CAT Manual ENG PDF - 729.0 kB, submitted by BandRunner
- FT-950 Technical Supplement PDF - 8.83 MB, submitted by BandRunner
- FT-950 User PDF - 6.59 MB, submitted by BandRunner
- FT-950 Alignment Menu (hidden) VND.OASIS.OPENDOCUMENT.TEXT - 340.3 kB, submitted by BandRunner
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Pretty good for the price | 2 years ago by BandRunner | |
| Good solid radio | 3 years ago by n5xjt | |
| Yaesu FT950 | 3 years ago by radiomanL | |
| Good beginners radio.... until it fails. | 13 years ago by AK4AT | |
| I love my yaesu ft 950 | 14 years ago by iclord | |
| Best value and superb interface | 15 years ago by KO4GS | |
| Excellent Bang for the Buck! | 15 years ago by KN7S |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-950. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-950 in Good condition is around:
- EUR 526 ~ EUR 949
- USD 771 ~ USD 974
These estimates are based on the following prices:
