WiNRADiO WR-G315i

PC-card HF/VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find WiNRADiO WR-G315i rigs and spare parts on eBay Find the WiNRADiO WR-G315i on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range

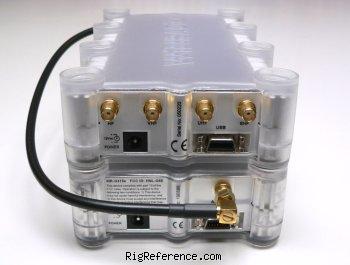

9 kHz - 1800 MHz (3500 or 8599 MHz with optional AMFE unit)
TX-range
-
HAM bands
?
Stability
0.5 ppm (0 to 60 C)
Tuning steps
1 Hz kHz
Filters
?

Receiver

Modulations
AM   AM-sync   FM   W-FM   CW   USB   LSB   DSB   ISB
Sensitivity
Mode 0.15?500 MHz 500?1800 MHz
AM, AMS (30% modulation) ?108dBm
(0.89V) ?104dBm
(1.4V)
AM, AMS (80% modulation) ?116dBm
(0.35V) ?112dBm
(0.56V)
LSB, USB, ISB, DSB ?119dBm
(0.25V) ?115dBm
(0.40V)
CW ?126dBm
(0.11V) ?122dBm
(0.18V)
FM ?113dBm
(0.50V) ?109dBm
(0.80V)
Selectivity
?
Receiver system
DSP-based SDR with DDS-based double-conversion superheterodyne front end
IF-frequencies
1st: 109.65 MHz
2nd: 16 kHz
Image rejection
1.8-150 MHz: 60 dB typ. 150-1800 MHz: 50 dB typ.
Audio output
600 ohm line audio

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
Drawn from PCI interface
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
195 × 99 × 19 mm (7.68 × 3.90 × 0.75 in)
Weight
330 gr (11.6 oz)
Form factor
PC-card
Manufactured
Between 200x and 200x
MPN
WINRADIO-WR-G000315I

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
DSP
Number of memory channels limited by computer memory
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
