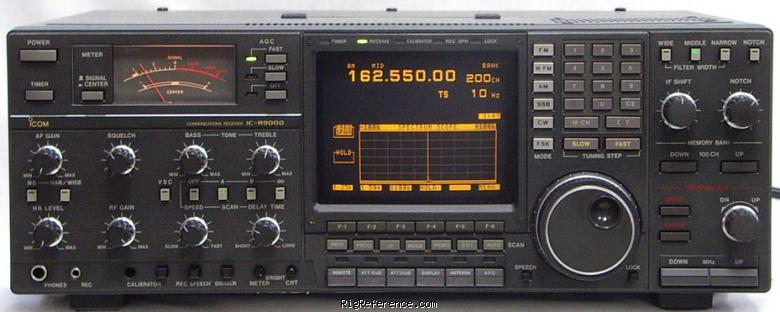

ICOM IC-R9000L

Desktop HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

The ICOM IC-R9000L is a desktop HF/VHF/UHF scanner / receiver covering 0.1-1999.8 MHz. It has an internal speaker, 1 memory bank with 1000 channels and can be powered by mains or 13.8V DC. Dimensions are 150 × 424 × 365 mm.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 1.25m 70cm 33cm 23cm 10m 4m 2000m
Frequency stability: ?
Tuning steps: ?
Memories: 1000 channels in 1 bank(s)

Receiver

RX-range: 0.1-1999.8 MHz
Modulations: AM FM W-FM CW SSB FSK
Sensitivity: AM (10 dB S/N)
0.1-5 MHz: 3.2 µV
0.5-1.8 MHz: 6.3 µV
1.8-30 MHz: 1 µV
30-1000 MHz: 1.4 µV
1000-1240 MHz: 4 µV
1240-1300 MHz: 2 µV
1300-1600 MHz: 4 µV
1600-2000 MHz: 5.6 µV
FM (12 dB SINAD)
30-1000 MHz: 0.5 µV
1000-1240 MHz: 1 µV
1240-1300 MHz: 0.5 µV
1300-1600 MHz: 1 µV
1600-2000 MHz: 1.4 µV
W-FM (12 dB SINAD)
30-1000 MHz: 1.4 µV
1000-1240 MHz: 4 µV
1240-1300 MHz: 2 µV
1300-1600 MHz: 4 µV
1600-2000 MHz: 5.6 µV
SSB/CW/FSK (10 dB S/N)
0.1-0.5 MHz: 0.5 µV
0.5-1.8 MHz: 1 µV
1.8-30 MHz: 0.16 µV
30-1000 MHz: 0.32 µV
1000-1240 MHz: 0.63 µV
1240-1300 MHz: 0.32 µV
1300-1600 MHz: 0.63 µV
1600-2000 MHz: 1 µV
Selectivity: AM
6 kHz (-6 dB)
FM
15 kHz (-6 dB)
W-FM
150 kHz (-6 dB)
SSB/CW/FSK
2.4 kHz (-6 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Connections

Antenna: N-type + RCA (Tulip)
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 13.8V DC
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 424 × 150 × 365 mm (16.69 × 5.91 × 14.37 in)
Weight: 20.00 kg (44.1 lbs)
Form factor: Base Station
Manufactured: Between 1999 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Same as model E, but with color LCD instead.
Accessories: -
RigReference ID: 3229
MPN: ICOM-IC-R009000L

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R9000L. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-R9000L in Good condition is around:

USD 2,090

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2010	USD 2999.00	Used / Mint	eBay
