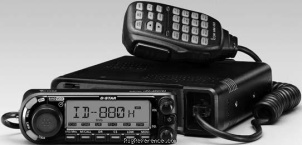

ICOM ID-880H Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Mobile Companion of the IC-80AD Handheld, D-Star concept.
Icom ID-880: 20 W RF-output
Icom ID-880/D: Asian version(?), 50 W RF-output
Icom ID-880/H: USA version, 50 W RF-output

Frequency range

RX-range
118-174 / 230-550 / 810-823 / 849-869 / 894-1000 MHz
TX-range
144-148 / 420-450 MHz (USA)
HAM bands
2m  70cm
Stability
2.5 ppm (10C to +60C)
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   DV
Sensitivity
FM (12 dB SINAD) < 0.18 ?V
DV (BER 1%) < 0.35 ?V
Selectivity
Wide: > 10 kHz/6 dB, < 30 kHz/60 dB
Narrow: > 6 kHz/6 dB, < 20 kHz/60 dB
DV: > 50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.35 MHz
2nd: 450 KHz
Image rejection
60 dB
Audio output
More than 2.0 W at 10% distortion with an 8 ?

Transmitter

Modulations
FM   N-FM   DV
RF-Output
50/15/5 W (approx.)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC 15%
Current drain RX
1.2 A max
TX
12.5 A max

Physical

Dimensions (w×h×d)
150 × 40 × 200 mm (5.91 × 1.57 × 7.87 in)
Weight
1.30 kg (2.9 lbs)
Form factor
Mobile
Manufactured
Between 2009 and 20xx in Japan
MPN

Other features

Memories
1052 channels in 26 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Alpha tags
GPS connectivity
Detachable front panel
USB programmable
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other ICOM documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM ID-880H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM ID-880H might be around:

  • USD 286.00
Price Condition Year User
USD 300.00 Okay / Used 2015 ac9hp
USD 300.00 Good / Used 2014 ac9hp
USD 459.95 Mint / New 2014 K9EQ
