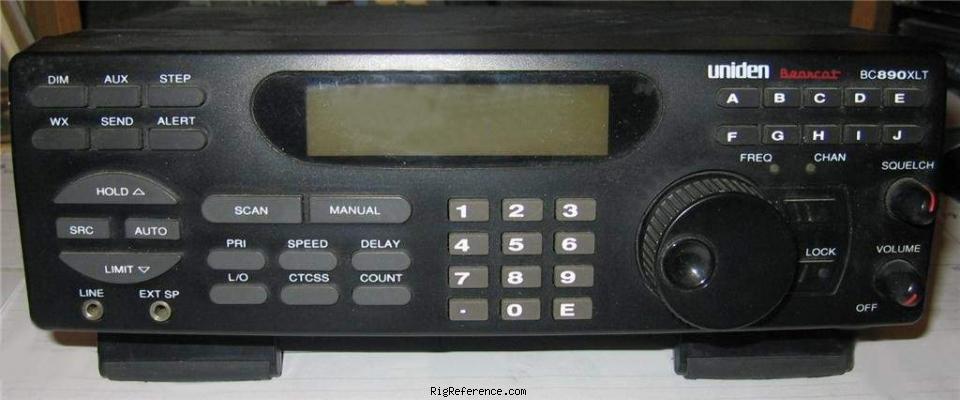

The Uniden-Bearcat BC890XLT is a mobile VHF/UHF scanner / receiver. It covers 29-54 / 108-174 / 216-512 / 806-956 MHz. It features a double conversion superheterodyne receiver system, 10 memory banks with 200 channels, auto-store, auto-sort, rotary control, tape control, weather alert and channel count. The audio output is 2.7 W and the power requirement is 13.8V DC. Dimensions are 84 × 265 × 188 mm. It weighs 1.7 kg.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 10 bank(s) @ 100 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 216-512 / 806-956 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 2.7 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 265 × 84 × 188 mm (10.43 × 3.31 × 7.40 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1994 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-store
Auto-sort
Rotary control
Tape control
Weather alert
Channel count
Optional CTCSS - Accessories
- -
- RigReference ID
- 4460
- MPN
- UNIDEN-BEARCAT-BC000890XLT
Manuals, diagrams and brochures
- Bearcat PDF - 1.18 MB, submitted by Darren Burke
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC890XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Uniden-Bearcat BC890XLT in Good condition is around:
- USD 45
These estimates are based on the following prices:
