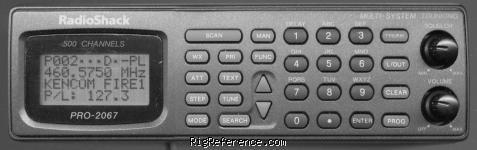

RadioShack / Realistic Pro-2067

Mobile VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Find RadioShack / Realistic Pro-2067 rigs and spare parts on eBay Find the RadioShack / Realistic Pro-2067 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands
6m  2m  70cm  33cm
Frequency stability
?
Tuning steps
5 / 12.5 kHz
Memories
500 channels in 10 bank(s) @ 25 channels/second

Receiver

RX-range
29-54 / 108-174 / 380-512 / 806-960 MHz
Modulations
AM   FM
Sensitivity
FM (20 dB S/N)
29–54 MHz: 0.3 µV
108–137 MHz: 0.3 µV
137–174 MHz: 0.5 µV
380–512 MHz: 0.5 µV
806–960 MHz: 0.7µV
AM (20 dB S/N)
29–54 MHz: 1 µV
108–137 MHz: 1 µV
137–174 MHz: 1.5 µV
380–512 MHz: 2 µV
806–960 MHz: 2 µV
Selectivity
±10 kHz (–6 dB)
±18 kHz (–50 dB)
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 257.5 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
> 60 dB
Audio output
1.5 W @ 10% THD

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
500 mA
TX
-

Physical

Dimensions (w×h×d)
170 × 50 × 140 mm (6.69 × 1.97 × 5.51 in)
Weight
920 gr (2.0 lbs)
Form factor
Mobile
Manufactured
Between 200x and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
Trunking
Accessories
-
RigReference ID
3793
MPN
RADIOSHACK-/-REALISTIC-PRO-002067

Manuals, diagrams and brochures

RadioShack PRO-2067 Owner's Manual PDF - Unknown size, submitted by RigReference
