Wadley loop design

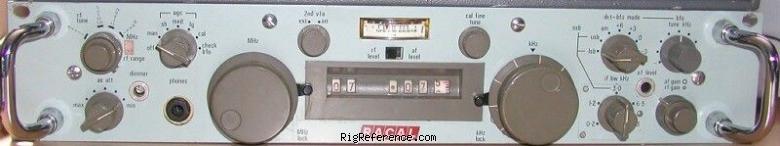

Transistorised H.F. communications receiver.

General characteristics

HAM bands
?
Frequency stability
±50 Hz over an eight hour period at constant ambient temperature and humidity after 2 hours from switching on. Better than 50 Hz per degree Centigrade at constand humidity after 2 hours from switching on.
Tuning steps
?
Memories
?

Receiver

RX-range
0.98-30 MHz
Modulations
AM   CW   USB   LSB   DSB
Sensitivity
CW / SSB: 1 µV for 15 dB S/N
AM / DSB: 30% modulated at 400 Hz: 3 µV for 15 dB S/N
Selectivity
0.5-13 kHz
Filters
0.2 / 1.2 / 3.0 / 6.5 / 13 kHz
Receiver system
?
IF-frequencies
455 kHz
100 kHz
Image rejection
?
Audio output
?

Connections

Antenna
Proprietary
Impedance
75Ω
Other
-

Electrical

Power requirements
Mains (100-125 / 200-250V) or 21-27V DC
Current drain RX
10 VA approx.
TX
-

Physical

Dimensions (w×h×d)
406 × 89 × 482.5 mm (15.98 × 3.50 × 19.00 in)
Weight
13.60 kg (30.0 lbs)
Form factor
Base Station
Manufactured
Between 1972 and 19xx in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
Automatic Gain Control
Accessories
-
RigReference ID
4476
MPN
RACAL-RA-001217

Manuals, diagrams and brochures

Racal-1217 HF Reciever Service Manual PDF - 7.27 MB, submitted by Berend
Racal Ra1217 HF Reciever Manual PDF - 715.2 kB, submitted by Berend

Upload relevant documents

Reviews & stories

Rating Title Submitted
My opinion about RA-1217 12 years ago by radiostacja

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Racal RA-1217. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Racal RA-1217 is around:

  • EUR 11.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2006 EUR 150.00 Used / Good radiostacja
