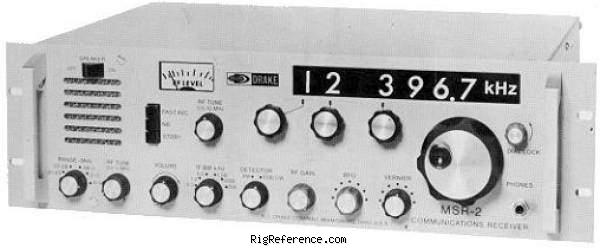

Drake MSR-2

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Marine version of the Drake DSR-2.

General characteristics

HAM bands
?
Frequency stability
Less than 200 Hz per 8 hour at 0-40 °C and ±10% variation in line voltage after 0.5 hour warmup
Tuning steps
10 / 1 MHz / 100 kHz

Receiver

RX-range
0.1-30 MHz
Modulations
AM   CW   USB   LSB   ISB   RTTY
Sensitivity
0.01-0.5 MHz
< 4 µV for 10 dB SINAD @ 2.4 kHz SSB
< 25 µV for 10 dB SINAD @ 6 kHz AM
0.5-30 MHz
< 0.3 µV for 10 dB SINAD @ 2.4 kHz SSB
< 2.0 µV for 10 dB SINAD @ 6 kHz AM
Selectivity
6 kHz @ -6 dB, 11.5 kHz @ -60 dB
2.4 kHz @ -6 dB, 4.3 kHz @ -60 dB
1.2 kHz @ -6 dB, 2.4 kHz @ -60 dB
0.3 kHz @ -6 dB, 0.6 kHz @ -60 dB
Filters
6 / 2.4 / 1.2 / 0.3 kHz Optional filters available
Receiver system
Double / triple conversion
IF-frequencies
?
Image rejection
≥ 60 dB below 10 MHz ≥ 50 dB above 10 MHz
Audio output
2 W @ 5% THD

Connections

Antenna
SO-239
Impedance
1000 / 50Ω
Other
-

Electrical

Power requirements
120 / 240 V AC ± 10% single fase 50~420 Hz
Current drain RX
35 W
TX
-

Physical

Manufactured
Between 1971 and 19xx
Dimensions (w×h×d)
340 × 140 × 380 mm (13.39 × 5.51 × 14.96 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Marine / Navy
Features + options
Nixie tube display
BFO
Noise blanker
AVC (Automatic Volume Control
Accessories
?
MPN
DRAKE-MSR-000002
