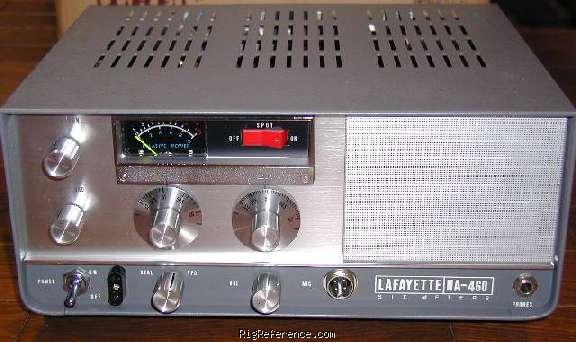

Lafayette HA-460

General characteristics

HAM bands

6m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

50-52 MHz

Modulations

AM

Sensitivity

Less then 1 mV for 10 dB S/N

Selectivity

±3kHz at 6dB down, less then ±12kHz at 50dB down

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 5745 kHz
2nd: 455 kHz

Image rejection

?

Audio output

4 W @ 8 ohms

Transmitter

TX-range

50-52 MHz

Modulations

AM

RF-output

10

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12V DC or mains (160 W max)

Current drain RX

?

TX

14 A max

Physical

Dimensions (w×h×d)

308 × 130 × 235 mm (12.13 × 5.12 × 9.25 in)

Weight

8.60 kg (19.0 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4482

MPN

LAFAYETTE-HA-000460

Manuals, diagrams and brochures

Lafayette HA-460 Installation and Operating Manual PDF - 373.2 kB, submitted by Gerd



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lafayette HA-460. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Lafayette HA-460 in Good condition is around:

• USD 87

Price History Chart

These estimates are based on the following prices:
