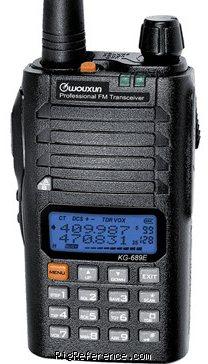

Wouxun KG-689E

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Wouxun KG-689E is a dual band handheld transceiver. It covers 66-68 MHz, 136-174 MHz, 245-246 MHz, 300-350 MHz, 350-390 MHz, 400-470 MHz and 450-520 MHz. The KG-689E has a frequency stability of ±2ppm with tuning steps of 5/6.25/10/12.5/25 kHz. RF output is VHF: 1W/5W, UHF: 1W/4W and audio output is 500mW @ <3% THD. It features 1 memory bank with 128 channels. The KG-689E runs on a 7.4V DC Li-Ion battery and weighs 258 gr. Dimensions are 105 × 62 × 39 mm.

General characteristics

HAM bands: ?
Frequency stability: ±2ppm
Tuning steps: 5/6.25/10/12.5/25 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 66-68 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520
Modulations: FM N-FM
Sensitivity: 0.25µV (12dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 500mW @ <3% THD

Transmitter

TX-range: 66-68 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520
Modulations: FM N-FM
RF-output: VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4V DC Li-Ion battery
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 62 × 105 × 39 mm (2.44 × 4.13 × 1.54 in)
Weight: 258 gr (9.1 oz)
Form factor: Handheld
Manufactured: Between 200x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags
ANI (caller ID)
CTCSS / DCS
DTMF tones
Dual band
Reverse frequency (shift)
VOX
1750Hz tone
3 color display backlight
Accessories: -
RigReference ID: 4540
MPN: WOUXUN-KG-000689E
