Baofeng UV-5R 25th Anniversary Edition
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack

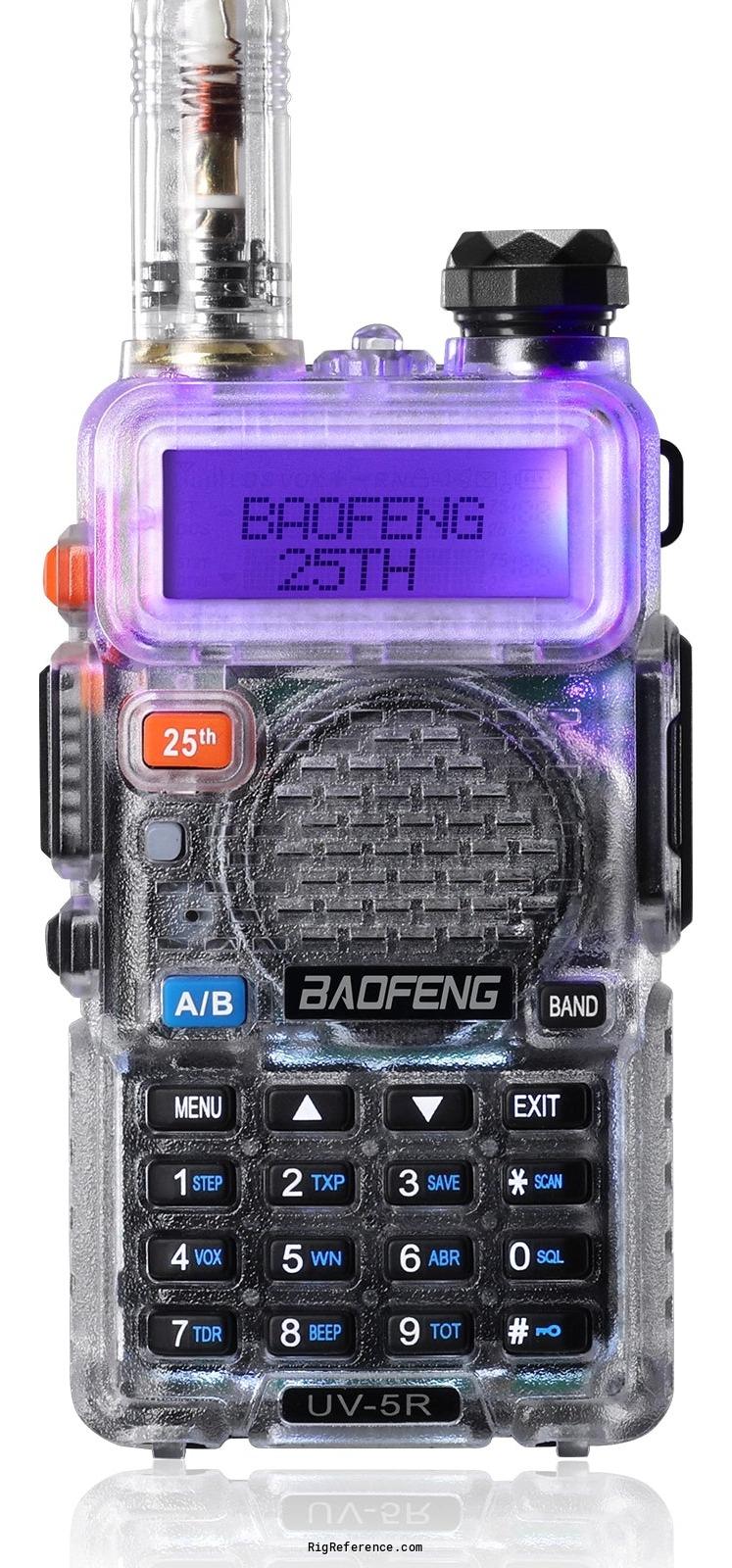

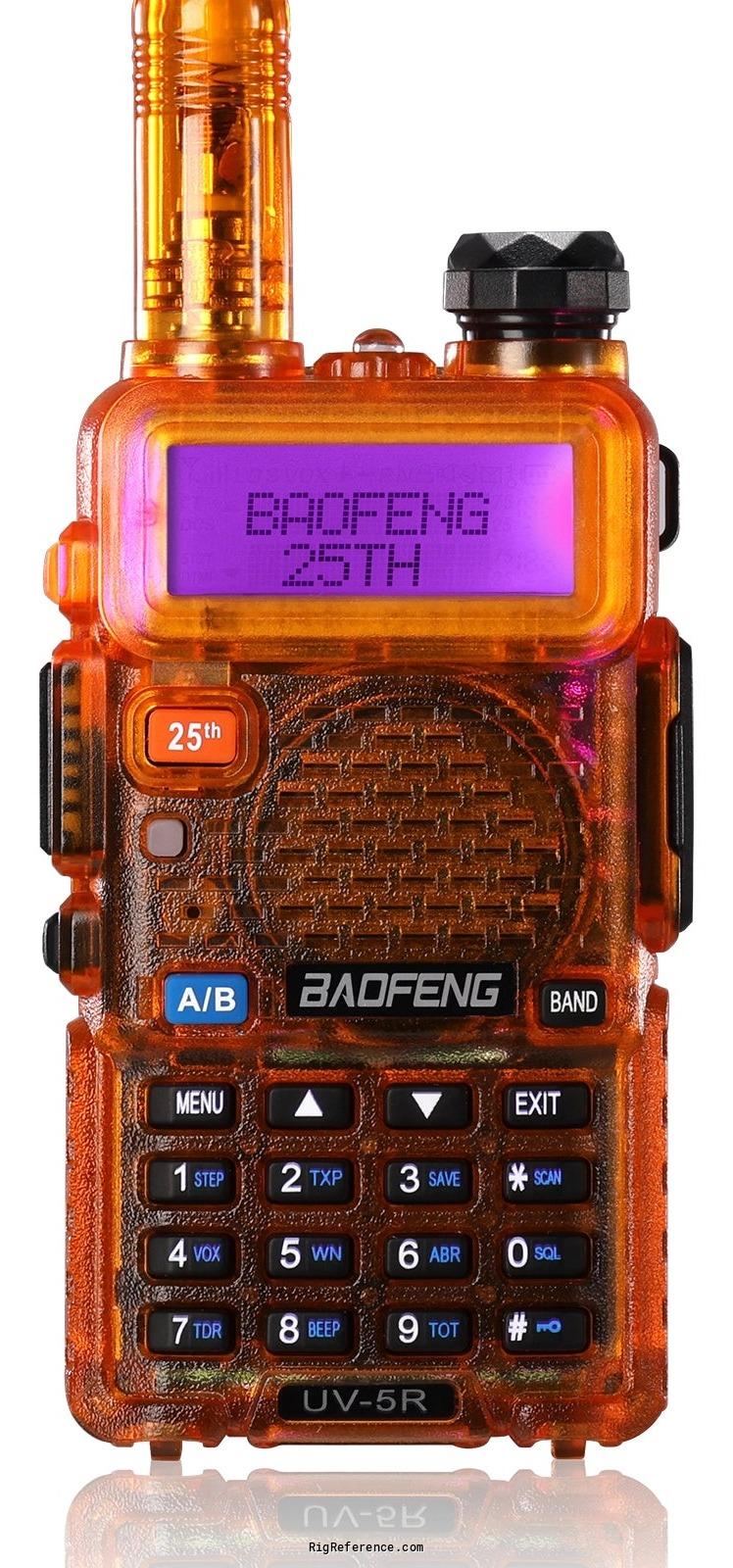

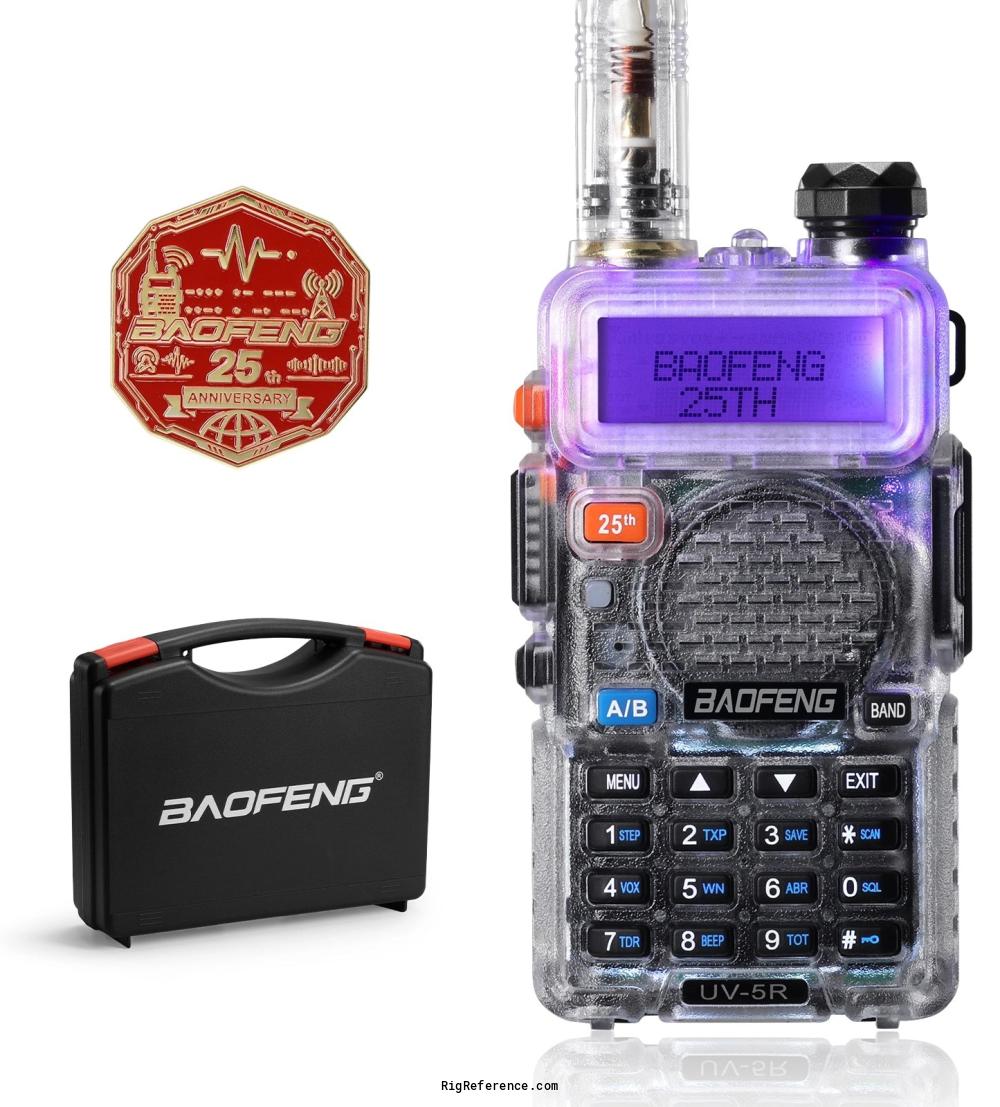

Limited edition marking 25 years of Baofeng. It shares the UV-5R's FCC ID (2AJGM-UV5R) and comes in two transparent colours, Glacier Ice and Solar Flare, with a 25th-anniversary metal badge, a "BAOFENG 25TH" startup screen and custom VFO/MR keycaps.
The 1800 mAh Li-ion battery has a built-in USB-C charging port and also fits the standard UV-5R. A desktop charger and a hard-shell carrying case are included.
Channel spacing 25 / 12.5 kHz. Tuning steps 2.5, 5, 6.25, 10, 12.5 and 25 kHz. Other functions: battery saver, low battery alert, time-out timer, keypad lock, monitor.
Programming with CHIRP and standard programming cables; temporary app programming with the optional A1D programmer.
Baofeng gives 104 DCS codes in the function list and 105 in the product summary.
See also Baofeng UV-5R.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 128 channels in bank(s)
Receiver
- RX-range
- 136-174 / 400-520 MHz
FM broadcast 65-108 MHz - Modulations
- FM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 5 / 1 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- USB-C for charging (battery)
Electrical
- Power requirements
- 7.4 V DC, Li-ion battery 1800 mAh USB-C on the battery or desktop charger
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 54 × 94 × 30 mm (2.13 × 3.70 × 1.18 in) Without antenna
- Weight
- 200 gr (7.1 oz) Including battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 2025 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 25th anniversary limited edition: transparent housing, metal badge, custom startup screen and VFO/MR keycaps
Dual band 2 m / 70 cm, 5 / 1 W
Dual display, dual watch / dual standby
128 channels, 50 CTCSS / 104 DCS
FM broadcast receive 65-108 MHz
1800 mAh battery with built-in USB-C charging
VOX, 1750 Hz burst tone, roger beep
LED flashlight, emergency alarm
CHIRP programmable
Hard-shell carrying case included - Accessories

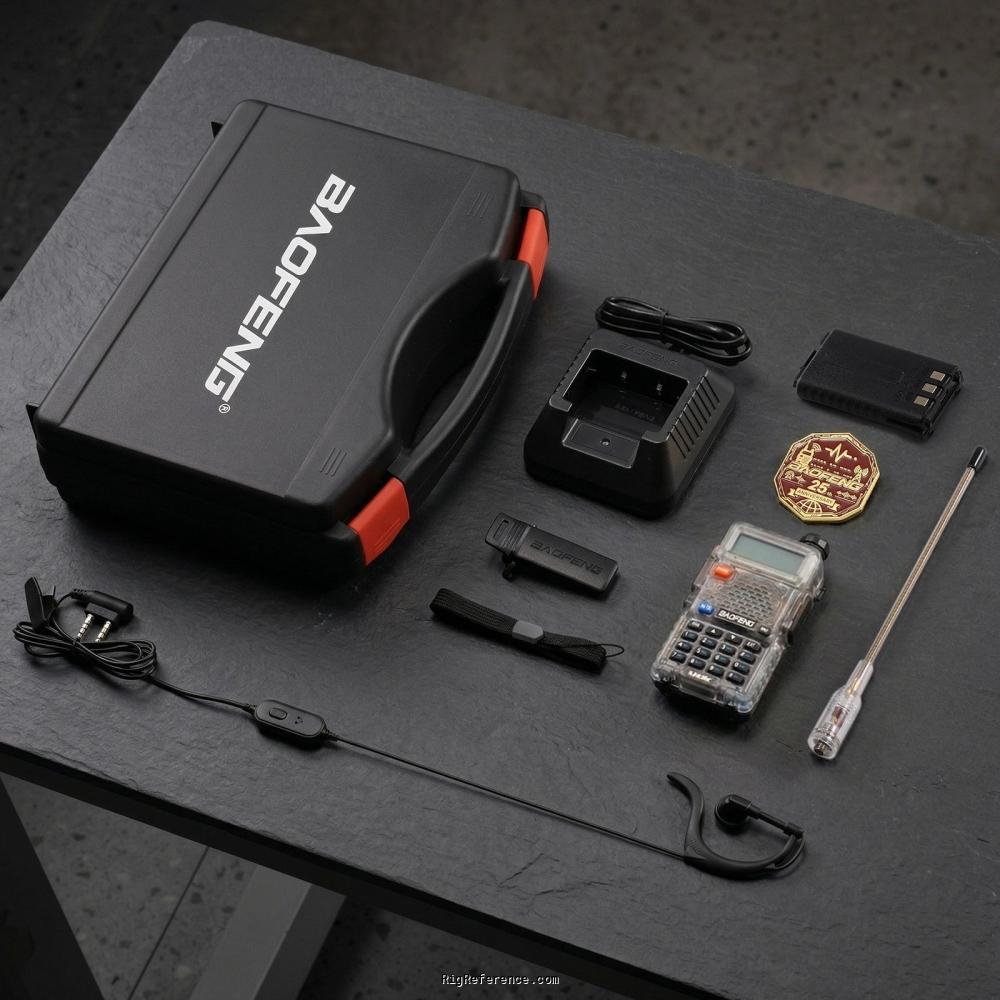

- Battery 1800 mAh, antenna, headset, belt clip, hand strap, desktop charger, carrying case, metal badge, thank you card
- RigReference ID
- 6855
- MPN
- BAOFENG-UV-000005R-25TH-ANNIVERSARY-EDITION
