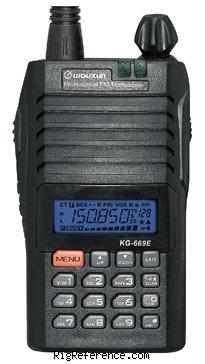

Wouxun KG-669E

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Wouxun KG-669E rigs and spare parts on eBay Find the Wouxun KG-669E on Amazon
We receive a small fee when you buy through these links, thank you!

The Wouxun KG-669E features a full numeric keypad which allows direct frequency entry. Many versions are available for different frequency bands. The version with 1750Hz tone and Priority Scan also comes with 200 memories instead of 128.

Frequency range

RX-range
66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz
TX-range
66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz
HAM bands
?
Stability
±2ppm
Tuning steps
5/6.25/10/12.5/25 kHz
Filters
?

Receiver

Modulations
FM   N-FM
Sensitivity
0.25µV (12dB SINAD)
Selectivity
12.5/25kHz
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
500mW @ <3% THD

Transmitter

Modulations
FM   N-FM
RF-Output
VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
Internal Li-Ion battery, 1300/1700mAh
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
63 × 106 × 39 mm (2.48 × 4.17 × 1.54 in) without antenna
Weight
265 gr (9.4 oz) with antenna and battery
Form factor
Handheld
Manufactured
Between 200x and 20xx in China
MPN
WOUXUN-KG-000669E

Other features

Memories
128 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
1750Hz (optional)
Audio scrambler
Alpha tags
DTMF
ANI-ID
VOX
CTCSS / DCS
Reverse frequency (shift)
Time-out timer
Digital FM radio
PC programmable
Accessories
?
