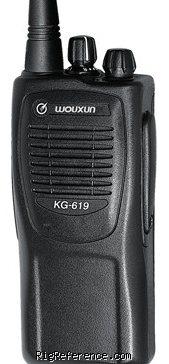

Wouxun KG-619

General characteristics

HAM bands

?

Frequency stability

±2ppm

Tuning steps

5/6.25/10/12.5/25 kHz

Memories

16 channels in 1 bank(s)

Receiver

RX-range

66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz

Modulations

FM   N-FM

Sensitivity

0.25µV (12dB SINAD)

Selectivity

12.5/25kHz

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

60dB

Audio output

500mW @ <5% THD

Transmitter

TX-range

66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz

Modulations

FM   N-FM

RF-output

VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

59 × 126 × 41 mm (2.32 × 4.96 × 1.61 in) without antenna

Weight

328 gr (11.6 oz) with antenna and battery

Form factor

Handheld

Manufactured

Between 200x and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Audio scrambler (optional)
DTMF
PTT-ID
VOX
CTCSS / DCS
Time-out timer
PC programmable

Accessories

-

RigReference ID

4545

MPN

WOUXUN-KG-000619
