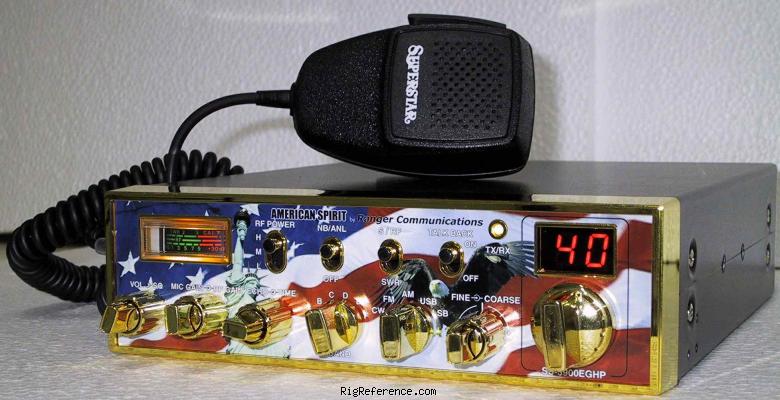

Ranger SS-3900EGHP Handheld Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

NB/ANL. Echo chamber

Frequency range

RX-range
28.015-28.465 MHz
TX-range
28.015-28.465 MHz
HAM bands
11m (CB)  10m
Stability
± 0.001 %
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   USB   LSB
Sensitivity
AM: < 1.0 μV For 10dB S+N/N
FM: < 0.5 μV For 12dB S+N/N
SSB/CW: < 0.5 μV For 10dB S+N/N
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.695 MHz (AM-1st, SSB)
2nd 455 KHz (AM-2nd)
Image rejection
> 50 dB
Audio output
2.5W @ 10% THD

Transmitter

Modulations
AM   FM   USB   LSB
RF-Output
AM/FM/CW: 9 W RMS, SSB: 25 W PEP

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC nominal ±15%
Current drain RX
< 1.2 A
TX
< 5 A

Physical

Dimensions (w×h×d)
200 × 60 × 273 mm (7.87 × 2.36 × 10.75 in)
Weight
2.25 kg (5.0 lbs)
Form factor
Handheld
Manufactured
Between 2004 and 201x
MPN

Other features

Memories
240 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
AM/FM/SSB/CW
Accessories
-
