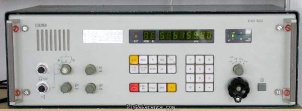

RFT EKD-500

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The EKD-500 featured an integrated FSK-decoder and could be remote controlled by a separate controller or a second EKD-500.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
0.01 kHz

Receiver

RX-range
14 kHz - 30 MHz
Modulations
AM   AM-sync   CW   USB   LSB   ISB   FSK   FAX
Sensitivity
AM, SSB < 0,5 uV
Selectivity
150 Hz, 400 Hz, 750Hz, 1,75 kHz, 3,1 kHz, 6 kHz, +/- 0,25 - 6 kHz (SSB, -6 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 70.2 MHz
2nd: 200 kHz
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
75Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Manufactured
Between 1986 and 19xx in East Germany
Dimensions (w×h×d)
540 × 198 × 395 mm (21.26 × 7.80 × 15.55 in) incl. feet
Weight
?
Form factor
Base Station

Other features

Memories
99 channels in 1 bank(s)
Usage
Commercial / Land mobile communication
Features + options
?
Accessories
?
MPN
RFT-EKD-000500

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the RFT EKD-500 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFT EKD-500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RFT EKD-500 is around:

  • EUR 467.00
Year Historic price Condition Submitted by
2013 EUR 650.00 Used / Mint ik5aio
