Motorola GM-340

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

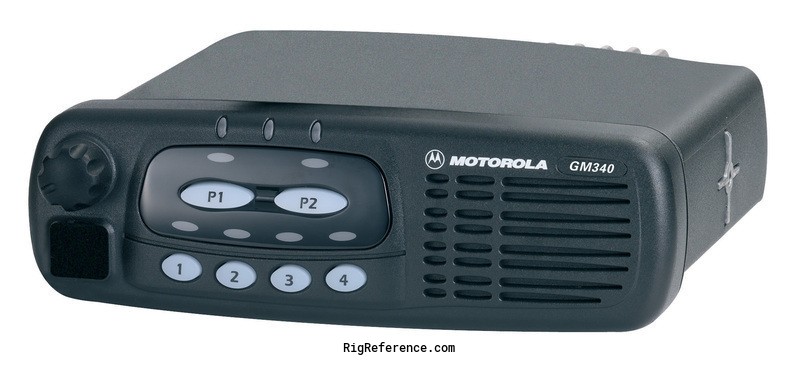

The Motorola GM-340 is a Mobile VHF/UHF Transceiver. It covers 136-174 MHz and 403-470 MHz for both receive and transmit. RF output is 1-25 W. It features voice encryption and trunking options. The radio has 1 memory bank with 16 channels. Power requirements are 10.8-15.6 VDC. Dimensions are 56 × 176 × 177 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 16 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
403-470 MHz
Modulations: FM
Sensitivity: < 0.3 uV (12 dB SINAD) ETS
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 MHz
403-470 MHz
Modulations: FM
RF-output: 1-25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 10.8-15.6 VDC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 176 × 56 × 177 mm (6.93 × 2.20 × 6.97 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 199x and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: Voice encryption and trunking options
Accessories: -
RigReference ID: 5210
MPN: MOTOROLA-GM-000340

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Motorola GP340 User Guide PDF - 2.19 MB, submitted by Gerd

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Motorola GM-340. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Motorola GM-340 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
