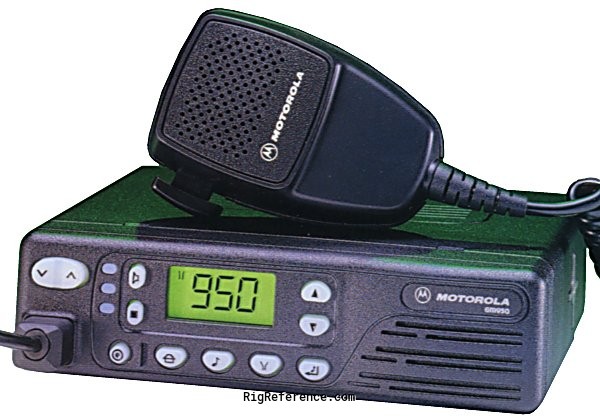

Motorola GM-950 N3

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Motorola GM-950 N3 is a Mobile VHF/UHF Transceiver. It covers 68-88 MHz, 136-174 MHz and 403-470 MHz for both receive and transmit. The radio features an image rejection of > 70 dB, an RF output of 5/25 W, and 1 memory bank with 128 channels. It requires 13.8V DC power and weighs 1.05 kg. Dimensions are 44 × 168 × 160 mm. The GM-950 N3 includes Select 5/5-tone selcall, CTCSS/PL, and a split mounting option.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 68-88 MHz
136-174 MHz
403-470 MHz
Modulations: FM
Sensitivity: < 0.35 µV (12 dB SINAD)
Selectivity: > 60 dB (12.5 kHz)
> 70 dB (20/25 kHz)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: > 70 dB
Audio output: ?

Transmitter

TX-range: 68-88 MHz
136-174 MHz
403-470 MHz
Modulations: FM
RF-output: 5/25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 168 × 44 × 160 mm (6.61 × 1.73 × 6.30 in)
Weight: 1.05 kg (2.3 lbs)
Form factor: Mobile
Manufactured: Between 200x and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: Select 5/5-tone selcall. CTCSS/PL. Split mounting option.
Accessories: -
RigReference ID: 5216
MPN: MOTOROLA-GM-000950-N3

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Motorola GM-950 N3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Motorola GM-950 N3 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
