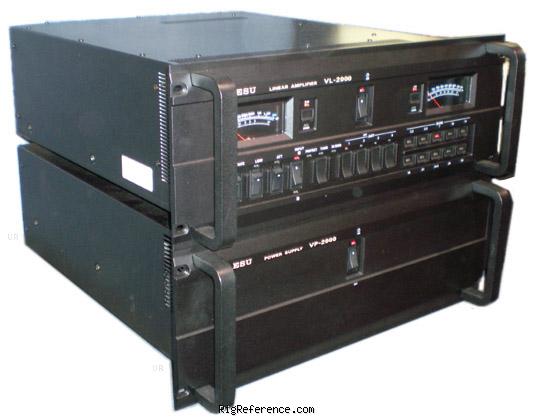

The Yaesu VL-2000 high performance linear amplifier covers 160 to 10 meters + 6m. This impressive machine made its debut at the 2010 Dayton Hamvention but wasn't available until May 2011 to the general public.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Transmitter

TX-range
10-160 m + WARC / 50-54 MHz
Modulations
All mode
RF-Output
1.5 kW / 1 kW

Connections

Antenna
SO-239
Impedance
25-100Ω
Other
-

Electrical

Power requirements
+48 V DC, +12 V DC and -12 V DC from separate VP-2000 PSU
Current drain RX
?
TX
?

Physical

Manufactured
Between 2011 and 201x in Japan
Dimensions (w×h×d)
482 × 177 × 508 mm (18.98 × 6.97 × 20.00 in) 19" rack cabinet
Weight
24.50 kg (54.1 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
YAESU-VL-002000

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Still in the drafting Board?

Yaesu VL-2000, Desktop Shortwave Linear Amplifier

Yaesu displayed a non-working VL-2000 at Dayton last year. I wonder if it will ever hit the market. I own a VL-1000 and it works perfectly, except that it gives only 800 watts out. So, the VL-2000 would be the perfect amplifier: full legal limit output, fully automatic, integrates with FT-1000, 2000, and other transceivers, instant on. What else could you ask for?
[Raitings below are not valid.]

73,
Dave, W4DN

Written by dnovoa on Jan 16, 2011

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2011

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VL-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices: (see all 0 prices)
