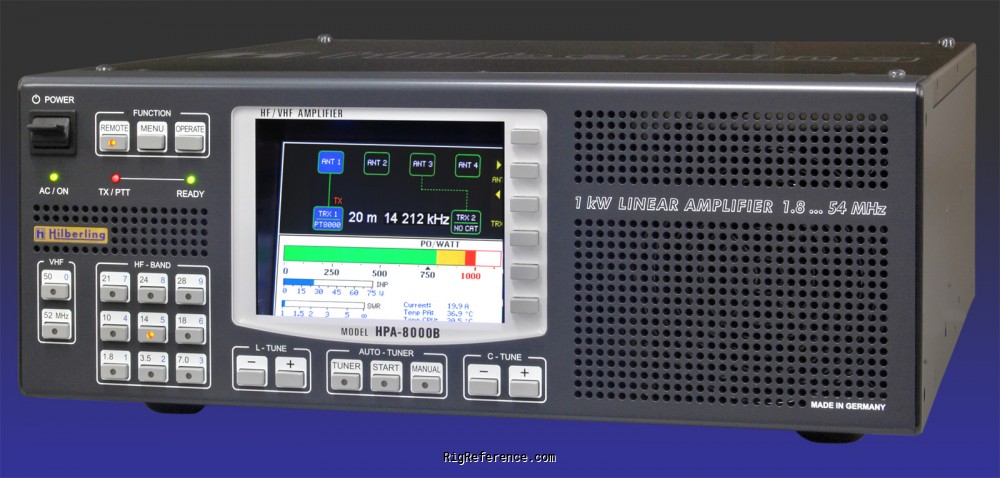

Hilberling HPA-8000B-54 1 kW Linear Amplifier
FCC-approved version of the Hilberling HPA-8000B, for the American market?
Frequency range
- RX-range
- 1.8-54 MHz
- TX-range
- 1.8-54 MHz
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Stability
- -
- Tuning steps
- -
- Filters
- -
Receiver
- Modulations
- All mode AM FM CW SSB
- Sensitivity
- -
- Selectivity
- -
- Receiver system
- -
- IF-frequencies
- -
- Image rejection
- -
- Audio output
- -
Transmitter
- Modulations
- All mode AM FM CW SSB
- RF-Output
- 1 kW @ 50 W input
Connections
- Antenna
- N-type
- Impedance
- -
Electrical
- Power requirements
- Mains, internal PSU, 200-260 V AC
- Current drain RX
- -
- TX
- 13 A max
Physical
- Dimensions (w×h×d)
- 425 × 459 × 173 mm (16.73 × 18.07 × 6.81 in)
- Weight
- 19.80 kg (43.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2017 and 20xx in Germany
- MPN
Other features
- Memories
- -
- Usage
- Amateur / Ham radio operators
- Features + options
- Interfaces: RS-232, CI-V, USB
- Accessories
- -
