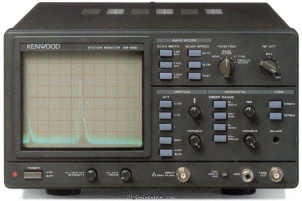

Kenwood SM-230 Desktop Station Control

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Kenwood SM-230 Station Monitor is a multi-functional unit. It functions as a band-scope, monitor and tone generator. It is the ideal product for supporting, monitoring and calibrating equipment in radio stations.

Frequency range

RX-range
1.8-150 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
260 × 155 × 427 mm (10.24 × 6.10 × 16.81 in) including protrusions
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
- Bandscope ±25/100/250 kHz
- 10 MHz Oscilloscope
- Matches many Kenwood Transceivers
- Wideband Transmission Monitor
- RTTY X-Y Tuning Meter
- Built-in 1000/1575 Hz Two-Tone Generator
Accessories
-

Manuals, diagrams and brochures

Kenwood SM-230 Service Manual and Service Note submitted by RigReference
