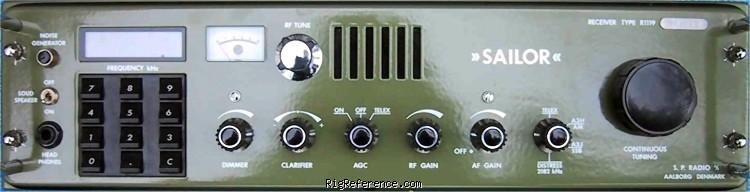

The Sailor R1119 marine receiver covers 10 kHz to 30 MHz without interruptions. It uses a digital synthesizer for frequency generation. The desired frequency can be set via a 10-digit keyboard or built-in continuous tuning wheel. The frequency is displayed on a six segment liquid crystal display (LCD). A 10 MHz TCXO is used. The R1119 is prepared for use in conjunction with telex and faximile equipment. Auto-selecting, higher order RF-filters ensure good duplex performance. The receiver fits into a 19" (SAILOR) rack system or in a self containing cabinet (H1225). The optional N1405 AC/DC power supply supports automatic change-over from AC to DC.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m  2000m
Frequency stability
Short term: 5 Hz, long term: 25 Hz (o°C - 40°C)
Tuning steps
?
Memories
?

Receiver

RX-range
10 kHz - 30 MHz
Modulations
AM   CW   USB
Sensitivity
MF: ≥ 16 dB / 1 µV
HF: ≥ 10 dB / 1 µV
Selectivity
SSB: 300 Hz @ -6 dB / 2700 Hz @ -60 dB
AM: 2.7 kHz @ -6 dB / 10 kHz @ -60 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.6085 / 16.6085 MHz
2nd: 600 kHz
Image rejection
≥ 60 dB
Audio output
4 W / 8 ohm

Connections

Antenna
Proprietary
Impedance
50-75Ω
Other
-

Electrical

Power requirements
Mains, 12/24 V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Denmark

Other features

Usage
Marine / Navy
Features + options
LCD frequency readout
2182 kHz watchkeeping channel
10-digit keypad
Accessories
-
RigReference ID
5316
MPN
SAILOR-R001119
