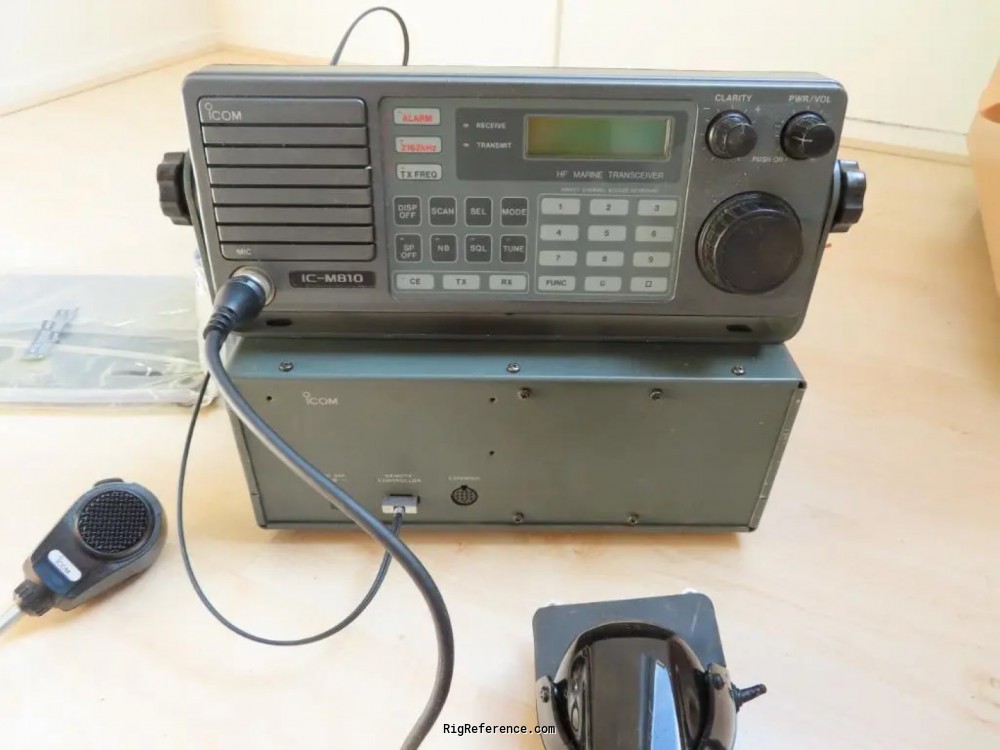

ICOM IC-M810

General characteristics

HAM bands

None

Frequency stability

+/-15 Hz (below 23 MHz, at -30°C ~ +60°C)

Tuning steps

100 Hz

Memories

1005 channels in 4 bank(s)

Receiver

RX-range

0.5-30 MHz

Modulations

AM   CW   USB   LSB   FSK   RTTY

Sensitivity

*0.50000~1.79999 MHz*
SSB/CW/FSK 6.3 µV, AM 30 µV

*1.80000~30.0000 MHz*
SSB/CW/FSK 0.5 µV, AM 3.16 µV (For 12 dB SINAD)

Selectivity

SSB 2.3 kHz/-6 dB, 4.2 kHz/-60 dB
AM 6 kHz/-6 dB, 20 kHz/-60 dB
CW, FSK 500 Hz/-6 dB, 1.6 kHz/-60 dB* (*with optional FL-32A CW and RTTY Narrow Filter

Filters

?

Receiver system

Double-conversion superheterodyne

IF-frequencies

SSB - 1st 69.0115, 2nd 9.0115
CW, FSK - 1st 69.0106, 2nd 9.0106
AM - 1st 69.0100, 2nd 9.0100 (Unit: MHz)

Image rejection

?

Audio output

5 W internal speaker

Transmitter

TX-range

2–3 / 4–5 / 6–7 / 8–9 / 12–14 / 16-17 / 18–19 / 22–23 / 25–26 MHz (Approx)

Modulations

AM   CW   USB   LSB   FSK   RTTY

RF-output

150 W max (60 W above 23 MHz)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.6 V DC

Current drain RX

2 A max

TX

30 A max

Physical

Dimensions (w×h×d)

287 × 112 × 62 mm (11.30 × 4.41 × 2.44 in)

Weight

6.50 kg (14.3 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 19xx in Japan

Other features

Usage

Marine / Navy

Features + options

-

Accessories

-

RigReference ID

6626

MPN

ICOM-IC-M000810

Manuals, diagrams and brochures

Icom IC-M810 instruction manual PDF - 6.53 MB, submitted by RigReference
