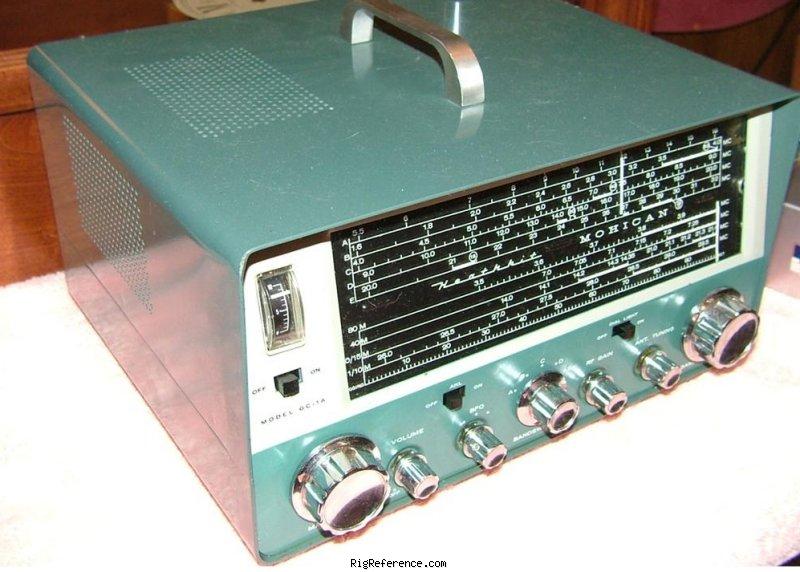

This is a revised version of the Heathkit GC-1 'Mohican'. Exact differences between the two models are lost in history.

General characteristics

HAM bands
80m  20m  15m  11m (CB)  10m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
0.55-32 MHz in 5 bands
Modulations
AM   CW   SSB
Sensitivity
Broadcast band: 10 µV (10 dB SN)
Short wave bands: 2 µV (10 dB SN)
Selectivity
± 3 kHz (-6 dB)
Filters
-
Receiver system
Single conversion superheterodyne
IF-frequencies
455 kHz
Image rejection
?
Audio output
400 mW

Connections

Antenna
Clamps / screws + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
12 V DC or 8 × C cells
Current drain RX
35 mA
TX
-

Physical

Dimensions (w×h×d)
305 × 175 × 254 mm (12.01 × 6.89 × 10.00 in)
Weight
9.00 kg (19.9 lbs)
Form factor
Mobile
Manufactured
Between 1962 and 1968 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5359
MPN
HEATHKIT-GC-000001A-'MOHICAN'

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Heathkit Mohican Model GC-1A 4 years ago by oldradios2561

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit GC-1A 'Mohican'. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit GC-1A 'Mohican' is around:

  • USD 12.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 USD 20.00 Used / Good KK4IBG
