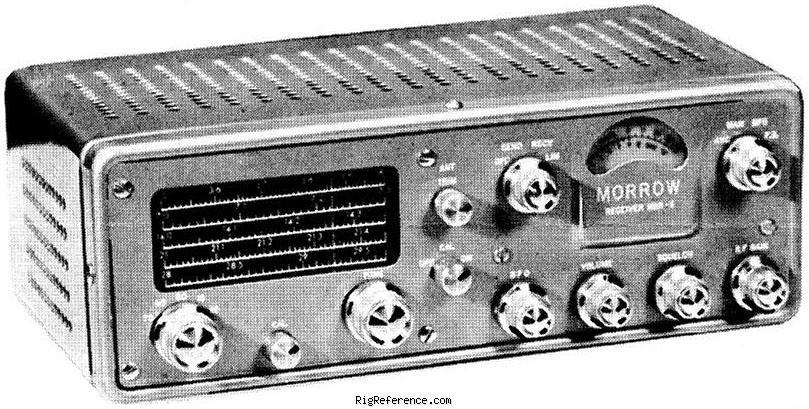

The Morrow MB-5 pairs with the Morrow MB-560 to form a very compact transceiver set. The MB-5/MB-560 where followed by the Morrow MB-6 / Morrow MB-565 combination in 1958.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 80-10 m
- Modulations
- AM CW SSB
- Sensitivity
- 0.5 µV on amateur bands
- Selectivity
- 4 kHz (-6 dB)
- Filters
- ?
- Receiver system
- Double conversion, 12 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6 or 12V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 6.80 kg (15.0 lbs) (shipping weight)
- Form factor
- Mobile
- Manufactured
- Between 195x and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5061
- MPN
- MORROW-MB-000005
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Morrow MB-5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Morrow MB-5 is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
