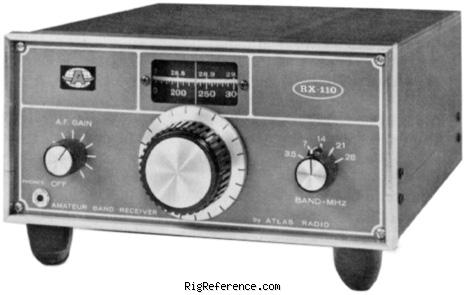

The Atlas RX-110 is a solid state, single conversion amateur band receiver. It covers 3.5-4, 7-7.5, 14-14.5, 21-21.5 and 28-29 MHz in CW and SSB modes. The RX-110 features an analog display and has a mini 3.5mm headphone jack on the front panel. There is a speaker built into the bottom panel.

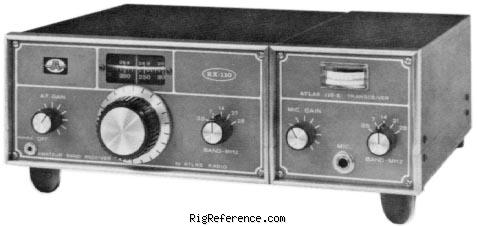

With the addition, of the TX-110 transmit module, this radio becomes an amateur transceiver. DC power consumption with the TX-110-L is 2 amps, or 16 amps with the TX-110-H.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 80-10 m
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- RCA (Tulip)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains or 13.8V DC
- Current drain RX
- 200 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 216 × 95 × 248 mm (8.50 × 3.74 × 9.76 in)
- Weight
- 3.20 kg (7.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5476
- MPN
- ATLAS-RX-000110
Manuals, diagrams and brochures
- Atlas RX-110 Installation and Operation Manual PDF - 41.32 MB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Atlas RX-110. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Atlas RX-110 is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
