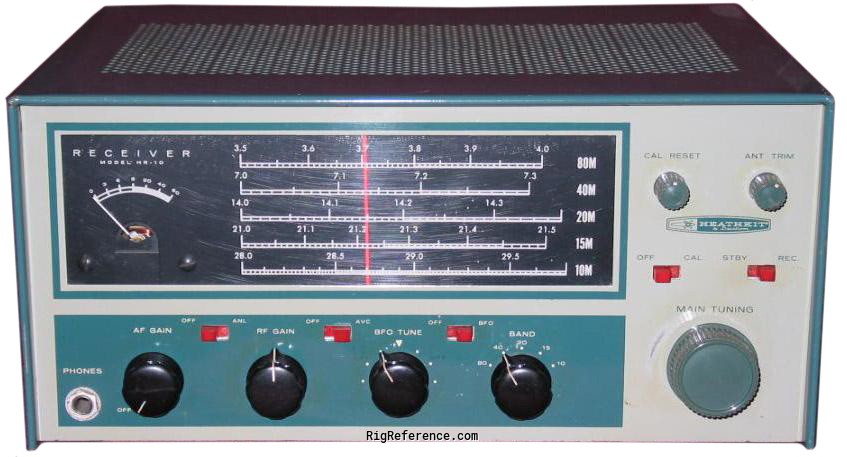

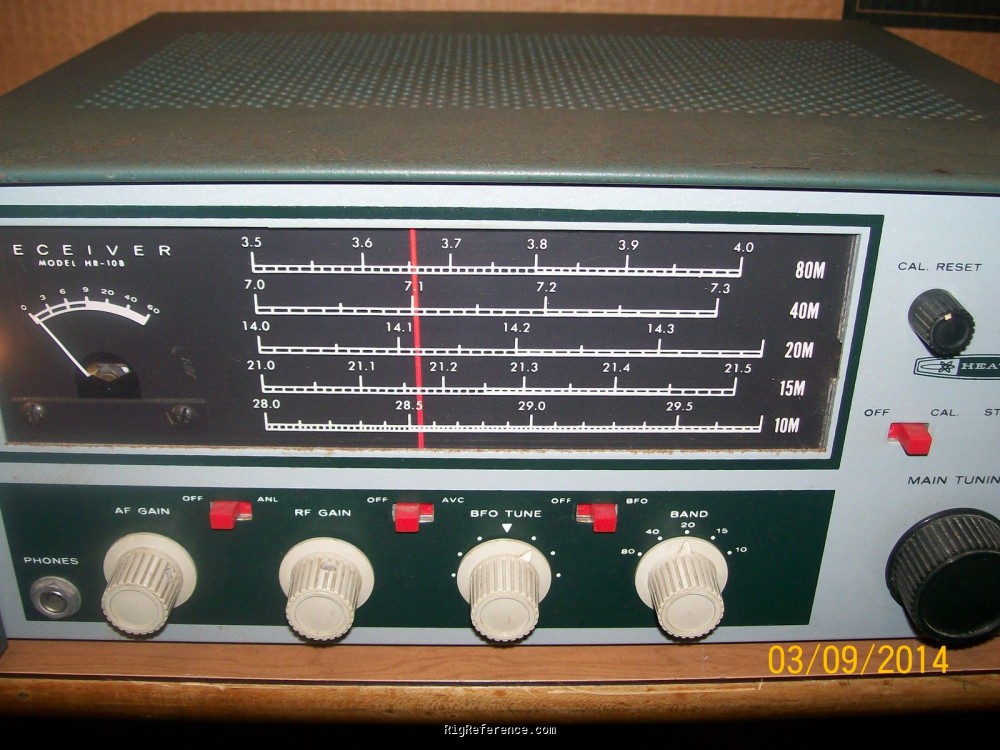

The Heathkit HR-10B is an improved Heathkit HR-10 and is designed for amateur bands between 80 and 10 meters. The large scale allows for accurate tuning and the tuning dial is illuminated.
Matches the Heathkit DX-60 transmitter.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- Lattice-type crystal filter for high selectivity
- Receiver system
- 7-tubes superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 9.50 kg (21.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 196x and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- S-meter
Antenna trimmer - Accessories
- -
- RigReference ID
- 6184
- MPN
- HEATHKIT-HR-000010B
Manuals, diagrams and brochures
- Assembly AND Operation Heathkit HR-10B Part 1 PDF - 552.3 kB, submitted by KV4NK
- Assembly AND Operation Heathkit HR-10B Part 2 PDF - 725.9 kB, submitted by KV4NK
- Assembly AND Operation Heathkit HR-10B Part 3 PDF - 498.9 kB, submitted by KV4NK
- Assembly AND Operation Heathkit HR-10B Part 4 PDF - 492.6 kB, submitted by KV4NK
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HR-10B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Heathkit HR-10B is around:
- USD 109.00 ~ USD 21.00
