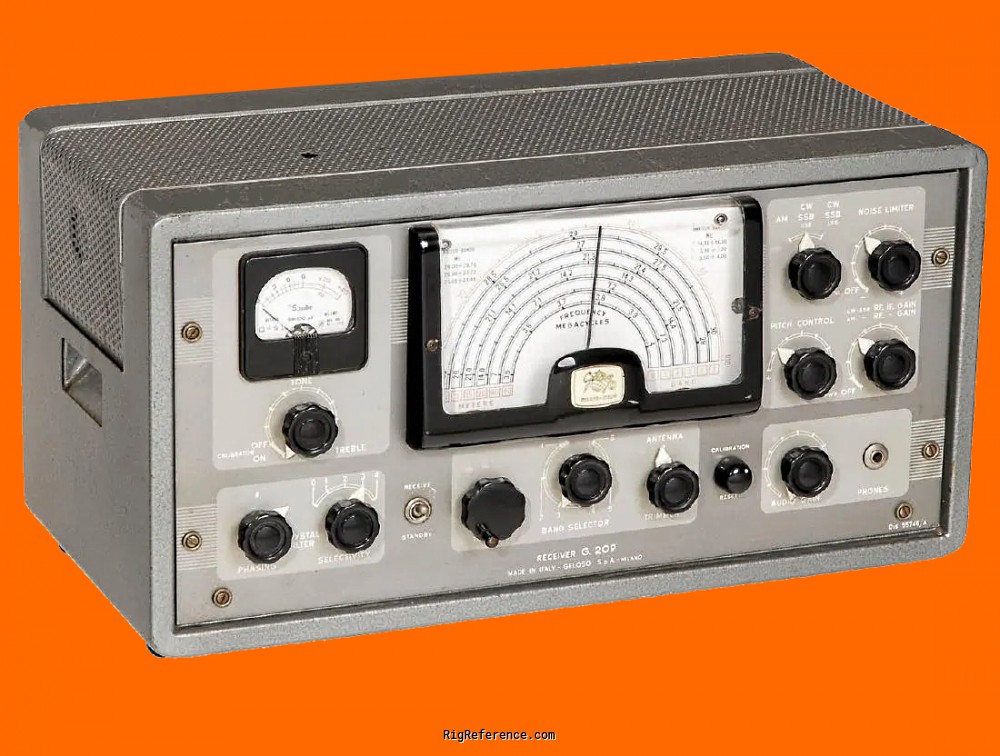

Geloso G-209

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

± 0.5 per 100 (± 0.5 kHz per MHz)

Tuning steps

± 10 kHz kHz

Memories

?

Receiver

RX-range

80-10 m

Modulations

AM   CW

Sensitivity

1 µV

Selectivity

?

Filters

5 xtals

Receiver system

Double conversion, 12 valves

IF-frequencies

1st: 4.6 MHz
2nd: 467 kHz

Image rejection

≥ 70 dB

Audio output

2.5 W

Connections

Antenna

-

Impedance

3.2 - 500Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

90 W

TX

-

Physical

Dimensions (w×h×d)

516 × 254 × 260 mm (20.31 × 10.00 × 10.24 in)

Weight

12.45 kg (27.5 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in Italy

Other features

Usage

Amateur / Ham radio operators

Features + options

Noise limiter
S-meter

Accessories

-

RigReference ID

5659

MPN

GELOSO-G-000209
