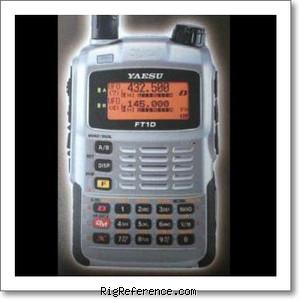

Rumored to be introduced during 2012 Dayton Hamfest. P25, GPS + APRS, Micro-SD, USB, optional camera microphone with image transmit!

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories
?

Receiver

RX-range
0.5-999 MHz
Modulations
AM   FM   N-FM   DV
Sensitivity
140-150 MHz: 0.16 µV (12 dB SINAD)
400-470 MHz: 0.18 µV (12 dB SINAD)
Selectivity
AM/FM
12 kHz (-6 dB), 35 kHz (-60 dB)
Filters
?
Receiver system
Single conversion (AM BC/W-FM) Double conversion (AM/FM/N-FM)
IF-frequencies
IF: 130 kHz
1st: 47.25 / 46.35 MHz
2nd: 450 kHz
Image rejection
?
Audio output
?

Transmitter

TX-range
2m / 70cm
Modulations
FM   N-FM   DV
RF-output
5 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC
Current drain RX
240 mA (+30 mA GPS on) (+80 mA Digital on)
TX
2 A max.

Physical

Dimensions (w×h×d)
60 × 95 × 28 mm (2.36 × 3.74 × 1.10 in)
Weight
265 gr (9.4 oz) with FNB-101Li and antenna
Form factor
Handheld
Manufactured
Between 2012 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in GPS
IPX5 water spray resistant
Vibralert
Internal AM bar antenna
GSM function (Group Short Message, 80 characters)
Micro SD card slot
Snapshot function/Image transfer with optional camera-microphone
Digital ARTS
USB port
Accessories
-
RigReference ID
5551
MPN
YAESU-FT-000001D

Manuals, diagrams and brochures

Yaesu FT1DR Operation Manual PDF - 2.65 MB, submitted by Richard
Yaesu FT1DR/DE Instruction Manual (Wires-X Edition) PDF - 9.15 MB, submitted by Richard
Yaesu FT1XDR/XDE/DR/DE Instruction Manual (GM Edition) PDF - 2.28 MB, submitted by Richard
Yaesu FT1DR Instruction Manual (APRS edition) PDF - 1.02 MB, submitted by Richard

Upload relevant documents

Reviews & stories

Rating Title Submitted
Nice little handi 6 years ago by Richard

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-1D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-1D is around:

  • USD 139.00 ~ USD 64.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 USD 300.00 Used / Mint Daniel Kondlatsch
2021 USD 300.00 Used / Mint Daniel Kondlatsch
2018 USD 170.00 Used / Good Richard
2017 USD 230.00 New / Mint Richard
2014 USD 160.55 Used / Good K9EQ
